transmission securing parts Support frame for 5-speed automatic gearbox
|
|
transmission securing parts Support frame for 5-speed automatic gearbox
|
|
|
|
|
|
|
|
|
transmission securing parts for 5-speed automatic gearbox
DEX,DEV,DEW, DPT,ECF,ECD, EDF,ECC,EMM, EFN,ETX,EUA, ETY,ETM,FEF, FAM,FAU,FAP, FAT,FAV,FAW, FAX,FBC,FBD, FRU
|
|
transmission securing parts for 5-speed automatic gearbox
|
|
|
DEX,DEV,DEW, DPT,ECF,ECD, EDF,ECC,EMM, EFN,ETX,EUA, ETY,ETM,FEF, FAM,FAU,FAP, FAT,FAV,FAW, FAX,FBC,FBD, FRU |
|
|
|
1 |
8D0 399 107 T
|
qty: 1, 1
Gearbox support also use:
6-cylinder
|
8D0 399 107 T
|
Gearbox support also use:
|
left
8D0 399 108 AP |
1, 1 |
6-cylinder |
|
|
|
1 |
4B3 399 113 C
|
qty: 1
Support
8-cylinder
|
4B3 399 113 C
|
Support
|
left |
1 |
8-cylinder |
|
|
|
2 |
N01 472 36
|
qty: 5, , 5
Socket head bolt with hexagon socket head also use:
|
N01 472 36
|
Socket head bolt with hexagon socket head also use:
|
M10X30 N 011 560 8 |
5, , 5 |
|
|
|
|
- |
N01 156 08
|
qty: 5
Washer
|
N01 156 08
|
Washer
|
10, 5X18X1, 6 |
5 |
|
|
|
|
3 |
N90 415 002
|
qty: 1
hexagon head bolt (combi)
|
N90 415 002
|
hexagon head bolt (combi)
|
M10X50 |
1 |
|
|
|
|
4 |
N01 047 07
|
qty: 2
Hexagon bolt F >> 4B-Y-045 000*
|
N01 047 07
|
Hexagon bolt F >> 4B-Y-045 000*
|
M10X70 |
2 |
|
|
|
|
4 |
N10 170 604
|
qty: 2
Hexagon bolt F 4B-Y-045 001>>
|
N10 170 604
|
Hexagon bolt F 4B-Y-045 001>>
|
M10X35 |
2 |
|
|
|
|
5 |
N90 315 202
|
qty: 2
Washer
|
N90 315 202
|
Washer
|
10, 5X34X4 |
2 |
|
|
|
|
6 |
8D0 399 151 R
|
qty: 1
Bonded rubber bush F >> 4B-W-170 001*
4-,6-cyl.
|
8D0 399 151 R
|
Bonded rubber bush F >> 4B-W-170 001*
|
|
1 |
4-,6-cyl. |
|
|
|
6 |
4B0 399 151 M
|
qty: 1
Bonded rubber bush F 4B-W-170 001>>*
4-,6-cyl.
|
4B0 399 151 M
|
Bonded rubber bush F 4B-W-170 001>>*
|
|
1 |
4-,6-cyl. |
|
|
|
6 |
4B3 399 151
|
qty: 1
Bonded rubber bush
8-cylinder
|
4B3 399 151
|
Bonded rubber bush
|
|
1 |
8-cylinder |
|
|
|
7 |
431 399 291
|
qty: 2
Stop
|
431 399 291
|
Stop
|
|
2 |
|
|
|
|
8 |
N02 300 47
|
qty: 2
Hexagon collar nut self-locking
|
N02 300 47
|
Hexagon collar nut self-locking
|
M10 |
2 |
|
|
|
|
9 |
N01 024 016
|
qty: 4
Hexagon bolt
|
N01 024 016
|
Hexagon bolt
|
M8X20 |
4 |
|
|
|
|
10 |
N01 152 527
|
qty: 4
Washer
|
N01 152 527
|
Washer
|
8, 4X16X1, 6 |
4 |
|
|
|
|
12 |
8D0 399 108 A P
|
qty: 1
Support also use:
6-cylinder
|
8D0 399 108 A P
|
Support also use:
|
right
8D0 399 107 T |
1 |
6-cylinder |
|
|
|
12 |
4B3 399 114 D
|
qty: 1
Support
8-cylinder
|
4B3 399 114 D
|
Support
|
right 3.7ltr. |
1 |
8-cylinder |
|
|
|
12 |
4B3 399 114 C
|
qty: 1
Support
8-cylinder
|
4B3 399 114 C
|
Support
|
right 4.2 Ltr. |
1 |
8-cylinder |
|
|
|
13 |
8D0 399 151 R
|
qty: 1
Bonded rubber bush F >> 4B-Y-045 000*
DEX,DEV,DPT, ECD,ECC,FAM
|
8D0 399 151 R
|
Bonded rubber bush F >> 4B-Y-045 000*
|
|
1 |
DEX,DEV,DPT, ECD,ECC,FAM |
|
|
|
13 |
4B0 399 151 M
|
qty: 1
Bonded rubber bush F 4B-Y-045 000>>*
DEX,DEV,DPT, ECD,ECC,FAM, FAC,FAV,DEW, EMM,EDF,ETM, FEF,FAU,FAW, ETY,FAP,FRU
|
4B0 399 151 M
|
Bonded rubber bush F 4B-Y-045 000>>*
|
6 cylinder |
1 |
DEX,DEV,DPT, ECD,ECC,FAM, FAC,FAV,DEW, EMM,EDF,ETM, FEF,FAU,FAW, ETY,FAP,FRU |
|
|
|
13 |
4B3 399 151
|
qty: 1
Bonded rubber bush
ECF,EFN,FBC, FBD
|
4B3 399 151
|
Bonded rubber bush
|
|
1 |
ECF,EFN,FBC, FBD |
|
|
|
15 |
8D0 399 299 A
|
qty: 1
Guard plate
|
8D0 399 299 A
|
Guard plate
|
left |
1 |
|
|
|
|
16 |
8D0 399 300 H
|
qty: 1
Guard plate
PR:T7F,T7T, T8B
|
8D0 399 300 H
|
Guard plate
|
right |
1 |
PR:T7F,T7T, T8B |
|
|
|
16 |
8D0 399 300 L
|
qty: 1
Guard plate
PR:T7Z
|
8D0 399 300 L
|
Guard plate
|
right |
1 |
PR:T7Z |
|
|
|
17 |
N90 724 601
|
qty: 6
hexagon head bolt (combi)
|
N90 724 601
|
hexagon head bolt (combi)
|
M6X22 |
6 |
|
|
|
|
|
|
Support frame
DEX,DEV,DEW, DPT,ECF,ECD, EDF,ECC,EMM, EFN,ETX,EUA, ETY,ETM,FEF, FAM,FAU,FAP, FAT,FAV,FAW, FAX,FBC,FBD, FRU
|
|
Support frame
|
|
|
DEX,DEV,DEW, DPT,ECF,ECD, EDF,ECC,EMM, EFN,ETX,EUA, ETY,ETM,FEF, FAM,FAU,FAP, FAT,FAV,FAW, FAX,FBC,FBD, FRU |
|
|
|
20 |
4B0 399 313 D M
|
qty: 1
Support frame
PR:1BV: Petr. engine
|
4B0 399 313 D M
|
Support frame
|
6 cylinder |
1 |
PR:1BV: Petr. engine |
|
|
|
20 |
4B0 399 313 C D
|
qty: 1
Support frame
PR:1BV: diesel eng.
|
4B0 399 313 C D
|
Support frame
|
6 cylinder |
1 |
PR:1BV: diesel eng. |
|
|
|
20 |
4B0 399 313 D C
|
qty: 1
Support frame
|
4B0 399 313 D C
|
Support frame
|
6 cylinder |
1 |
|
|
|
|
20 |
4B0 399 313 D F
|
qty: 1
Support frame
ETM,FEF,FAU ETY
|
4B0 399 313 D F
|
Support frame
|
|
1 |
ETM,FEF,FAU ETY |
|
|
|
20 |
4B0 399 313 C T
|
qty: 1
Support frame
|
4B0 399 313 C T
|
Support frame
|
4 cylinder |
1 |
|
|
|
|
20 |
4B0 399 313 D P
|
qty: 1
Support frame
PR:1BV: diesel eng.
|
4B0 399 313 D P
|
Support frame
|
4 cylinder |
1 |
PR:1BV: diesel eng. |
|
|
|
20 |
4B3 399 313 C
|
qty: X
Assembly carrier
ECF,EFN,FBC, FBD
|
4B3 399 313 C
|
Assembly carrier
|
aluminium |
X |
ECF,EFN,FBC, FBD |
|
|
|
20 |
4B3 399 313 D
|
qty: X
Assembly carrier
ECF,EFN,FBC, FBD
|
4B3 399 313 D
|
Assembly carrier
|
steel |
X |
ECF,EFN,FBC, FBD |
|
|
|
21 |
8D0 399 419 C
|
qty: 2
Bonded rubber bush F >> 4B-W-056 740
|
8D0 399 419 C
|
Bonded rubber bush F >> 4B-W-056 740
|
rear |
2 |
|
|
|
|
21 |
8D0 399 415 D
|
qty: 2
Bonded rubber bush F 4B-W-056 741>>
|
8D0 399 415 D
|
Bonded rubber bush F 4B-W-056 741>>
|
rear |
2 |
|
|
|
|
21 |
8D0 399 415 H
|
qty: 2
Bonded rubber bush F >> 4B-Y-062 560
|
8D0 399 415 H
|
Bonded rubber bush F >> 4B-Y-062 560
|
rear rear |
2 |
|
|
|
|
21 |
8D0 399 419 G
|
qty: 1
Bonded rubber bush F 4B-Y-062 561>>
|
8D0 399 419 G
|
Bonded rubber bush F 4B-Y-062 561>>
|
left rear 4 cylinder |
1 |
|
|
|
|
21 |
8D0 399 419 N
|
qty: 1
Bonded rubber bush F 4B-Y-062 561>>
|
8D0 399 419 N
|
Bonded rubber bush F 4B-Y-062 561>>
|
right rear 4 cylinder |
1 |
|
|
|
|
21 |
8D0 399 419 E
|
qty: 2
Bonded rubber bush
PR:1BV
|
8D0 399 419 E
|
Bonded rubber bush
|
rear |
2 |
PR:1BV |
|
|
|
22 |
8D0 399 415 D
|
qty: 2
Bonded rubber bush F >> 4B-W-056 740
|
8D0 399 415 D
|
Bonded rubber bush F >> 4B-W-056 740
|
front |
2 |
|
|
|
|
22 |
8D0 399 415 E
|
qty: 2
Bonded rubber bush F 4B-W-065 741>>
|
8D0 399 415 E
|
Bonded rubber bush F 4B-W-065 741>>
|
front |
2 |
|
|
|
|
22 |
8D0 399 419 E
|
qty: 2
Bonded rubber bush
PR:1BV
|
8D0 399 419 E
|
Bonded rubber bush
|
front |
2 |
PR:1BV |
|
|
|
23 |
8D0 399 541 B
|
qty: 1
Support
DEX,DEV,DPT, ECD,ECC,EMM, FAM,ETM,FEF, FAU,EDF,FAV, FAW,DEW
|
8D0 399 541 B
|
Support
|
left |
1 |
DEX,DEV,DPT, ECD,ECC,EMM, FAM,ETM,FEF, FAU,EDF,FAV, FAW,DEW |
|
|
|
23 |
4B3 399 541 A
|
qty: 1
Support
ECF,EFN,FBC, FBD
|
4B3 399 541 A
|
Support
|
left |
1 |
ECF,EFN,FBC, FBD |
|
|
|
23 |
8D0 399 541 B
|
qty: 1
Support
4-cylinder
|
8D0 399 541 B
|
Support
|
left |
1 |
4-cylinder |
|
|
|
24 |
8D0 399 542 E
|
qty: 1
Support
4-cylinder
|
8D0 399 542 E
|
Support
|
right |
1 |
4-cylinder |
|
|
|
24 |
8D0 399 542 B
|
qty: 1
Support
DEX,DEV,DPT, ECD,ECC,EMM, ETM,FEF,FAU, EDF,FAM,FAV, FAW,DEW
|
8D0 399 542 B
|
Support
|
right |
1 |
DEX,DEV,DPT, ECD,ECC,EMM, ETM,FEF,FAU, EDF,FAM,FAV, FAW,DEW |
|
|
|
24 |
4B3 399 541 A
|
qty: 1
Support
ECF,EFN,FBC, FBD
|
4B3 399 541 A
|
Support
|
|
1 |
ECF,EFN,FBC, FBD |
|
|
|
25 |
N90 823 501
|
qty: 4
Hexagon bolt
|
N90 823 501
|
Hexagon bolt
|
M12X1, 5X110 |
4 |
|
|
|
|
26 |
N01 953 03
|
qty: 4
Hex collared bolt
|
N01 953 03
|
Hex collared bolt
|
M8X25 |
4 |
|
|
|
|
27 |
N90 663 001
|
qty: 4
bolt, hex.hd.with shoul.(combi)
|
N90 663 001
|
bolt, hex.hd.with shoul.(combi)
|
M10X70 |
4 |
|
|
|
|
- |
8D0 399 375
|
qty: 1
Brace
|
8D0 399 375
|
Brace
|
|
1 |
|
|
|
|
- |
N90 630 501
|
qty: 2
hexagon head bolt (combi)
|
N90 630 501
|
hexagon head bolt (combi)
|
M10X22 |
2 |
|
|
|
|
- |
N02 300 47
|
qty: 2
Hexagon collar nut self-locking
|
N02 300 47
|
Hexagon collar nut self-locking
|
M10 |
2 |
|

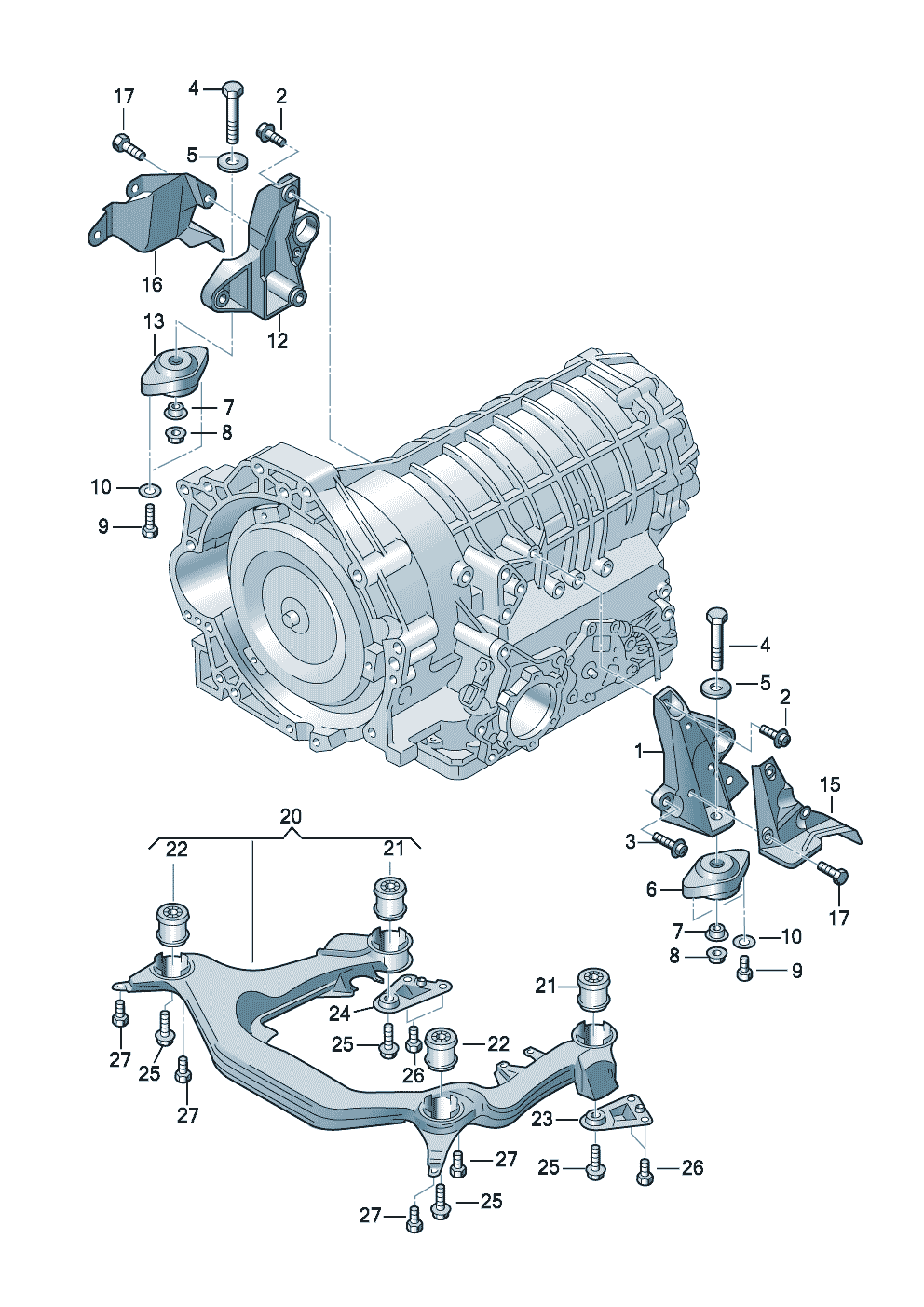

![transmission securing parts for 5-speed automatic gearbox for Audi A6/S6/Avant qu.(A6Q) 2001 [EUROPA]](https://img.7zap.com/images/oem/vag2410/AU/Bilder_zgd/156/156399800.png "transmission securing parts for 5-speed automatic gearbox for Audi A6/S6/Avant qu.(A6Q) 2001 [EUROPA]")
