Cylinder head cylinder head cover
Petrol eng.+ quattro
|
|
Cylinder head cylinder head cover
|
2.9ltr. |
|
Petrol eng.+ quattro |
|
|
|
1 |
06M 103 062 A N
|
qty: 1
Complete cylinder head (without camshaft) D >> - 25.09.2024
|
06M 103 062 A N
|
Complete cylinder head (without camshaft) D >> - 25.09.2024
|
cylinders 1-3 right |
1 |
|
|
|
|
1 |
06M 103 062 C B
|
qty: 1
Complete cylinder head (without camshaft) D - 25.09.2024>>
|
06M 103 062 C B
|
Complete cylinder head (without camshaft) D - 25.09.2024>>
|
cylinders 1-3 right |
1 |
|
|
|
|
2 |
06M 103 061 A N
|
qty: 1
Complete cylinder head (without camshaft) D >> - 25.09.2024
|
06M 103 061 A N
|
Complete cylinder head (without camshaft) D >> - 25.09.2024
|
cylinders 4-6 left |
1 |
|
|
|
|
2 |
06M 103 061 C B
|
qty: 1
Complete cylinder head (without camshaft) D - 25.09.2024>>
|
06M 103 061 C B
|
Complete cylinder head (without camshaft) D - 25.09.2024>>
|
cylinders 4-6 left |
1 |
|
|
|
|
3 |
06M 103 148 H
|
qty: 1
Cylinder head gasket D >> - 06.03.2024
|
06M 103 148 H
|
Cylinder head gasket D >> - 06.03.2024
|
cylinders 1-3 |
1 |
|
|
|
|
3 |
06M 103 148 L
|
qty: 1
Cylinder head gasket D - 06.03.2024>>
|
06M 103 148 L
|
Cylinder head gasket D - 06.03.2024>>
|
cylinders 1-3 |
1 |
|
|
|
|
4 |
06M 103 149 G
|
qty: 1
Cylinder head gasket D >> - 06.03.2024
|
06M 103 149 G
|
Cylinder head gasket D >> - 06.03.2024
|
cylinders 4-6 |
1 |
|
|
|
|
4 |
06M 103 149 J
|
qty: 1
Cylinder head gasket D - 06.03.2024>>
|
06M 103 149 J
|
Cylinder head gasket D - 06.03.2024>>
|
cylinders 4-6 |
1 |
|
|
|
|
5 |
06M 103 650 D
|
qty: 1
Seal
|
06M 103 650 D
|
Seal
|
cylinders 1-3 |
1 |
|
|
|
|
6 |
06M 103 649 D
|
qty: 1
Seal
|
06M 103 649 D
|
Seal
|
cylinders 4-6 |
1 |
|
|
|
|
7 |
N91 127 602
|
qty: X
Hexagon socket flat head bolt
|
N91 127 602
|
Hexagon socket flat head bolt
|
M6X35X16 |
X |
|
|
|
|
8 |
N91 184 801
|
qty: X
12-point socket head bolt (combi)
|
N91 184 801
|
12-point socket head bolt (combi)
|
|
X |
|
|
|
|
9 |
N91 131 501
|
qty: 3
sealing plug D >> - 31.10.2022
|
N91 131 501
|
sealing plug D >> - 31.10.2022
|
M10X1X8 |
3 |
|
|
|
|
9 |
N91 103 401
|
qty: 3
Seal bolt with sealing ring D - 31.10.2022>>
|
N91 103 401
|
Seal bolt with sealing ring D - 31.10.2022>>
|
M10X1X10 |
3 |
|
|
|
|
10 |
N91 127 602
|
qty: 32
Hexagon socket flat head bolt
|
N91 127 602
|
Hexagon socket flat head bolt
|
M6X35X16 |
32 |
|
|
|
|
11 |
059 103 139 B
|
qty: 16
dowel sleeve
|
059 103 139 B
|
dowel sleeve
|
8X9 |
16 |
|
|
|
|
12 |
N91 167 901
|
qty: 2
sealing plug
|
N91 167 901
|
sealing plug
|
M14X1, 5 |
2 |
|
|
|
|
13 |
06M 103 271 B
|
qty: 1
choke also to be used for:
|
06M 103 271 B
|
choke also to be used for:
|
1 |
1 |
|
|
|
|
13 |
06M 103 271 C
|
qty: 1
choke to be used for item:
|
06M 103 271 C
|
choke to be used for item:
|
2 |
1 |
|
|
|
|
14 |
06M 907 601 D
|
qty: 4
impulse sender Camshaft With seal D >> - 06.02.2023
|
06M 907 601 D
|
impulse sender Camshaft With seal D >> - 06.02.2023
|
|
4 |
|
|
|
|
14 |
06M 907 601 G
|
qty: 1
impulse sender Camshaft With seal D - 06.02.2023>>
|
06M 907 601 G
|
impulse sender Camshaft With seal D - 06.02.2023>>
|
Bench 1 Outlet |
1 |
|
|
|
|
14 |
06M 907 601 G
|
qty: 1
impulse sender Camshaft With seal D - 06.02.2023>>
|
06M 907 601 G
|
impulse sender Camshaft With seal D - 06.02.2023>>
|
Bench 2 Outlet |
1 |
|
|
|
|
14 |
06M 907 601 J
|
qty: 1
impulse sender Camshaft With seal D - 06.02.2023>>
|
06M 907 601 J
|
impulse sender Camshaft With seal D - 06.02.2023>>
|
Bench 1 Inlet |
1 |
|
|
|
|
14 |
06M 907 601 K
|
qty: 1
impulse sender Camshaft With seal D - 06.02.2023>>
|
06M 907 601 K
|
impulse sender Camshaft With seal D - 06.02.2023>>
|
Bench 2 Inlet |
1 |
|
|
|
|
15 |
N10 196 103
|
qty: 2
Oval socket head bolt with hex drive
|
N10 196 103
|
Oval socket head bolt with hex drive
|
M6X18 |
2 |
|
|
|
|
16 |
WHT 005 739
|
qty: 16
Socket head bolt with inner multipoint head
|
WHT 005 739
|
Socket head bolt with inner multipoint head
|
M10X170 |
16 |
|
|
|
|
17 |
N91 127 602
|
qty: X
Hexagon socket flat head bolt
|
N91 127 602
|
Hexagon socket flat head bolt
|
M6X35X16 |
X |
|
|
|
|
18 |
N90 903 502
|
qty: 2
Socket head bolt with inner multipoint head
|
N90 903 502
|
Socket head bolt with inner multipoint head
|
M8X35 |
2 |
|
|
|
|
19 |
06M 109 286 F
|
qty: 1
Cover
|
06M 109 286 F
|
Cover
|
right |
1 |
|
|
|
|
20 |
06M 109 285 F
|
qty: 1
Cover
|
06M 109 285 F
|
Cover
|
left |
1 |
|
|
|
|
21 |
N10 124 306
|
qty: 15
Hexagon socket flat head bolt
|
N10 124 306
|
Hexagon socket flat head bolt
|
M6X20 |
15 |
|
|
|
|
22 |
N91 004 802
|
qty: 1
double stud with hexagon drive
|
N91 004 802
|
double stud with hexagon drive
|
M6X22/M6X12 |
1 |
|
|
|
|
23 |
06M 145 420 A
|
qty: 3
End cap With seal
|
06M 145 420 A
|
End cap With seal
|
|
3 |
|
|
|
|
24 |
N02 822 22
|
qty: 3
seal ring
|
N02 822 22
|
seal ring
|
20X3, 15 |
3 |
|
|
|
|
25 |
N10 451 408
|
qty: 3
Oval hexagon socket head bolt
|
N10 451 408
|
Oval hexagon socket head bolt
|
M6X16 |
3 |
|
|
|
|
26 |
06M 103 515 H
|
qty: 1
oil separator
|
06M 103 515 H
|
oil separator
|
|
1 |
|
|
|
|
27 |
06M 103 517 B
|
qty: 1
Seal
|
06M 103 517 B
|
Seal
|
|
1 |
|
|
|
|
28 |
06M 103 727 A
|
qty: 1
Seal
|
06M 103 727 A
|
Seal
|
|
1 |
|
|
|
|
29 |
06M 103 485 C
|
qty: 1
End cap D >> - 02.03.2020
|
06M 103 485 C
|
End cap D >> - 02.03.2020
|
|
1 |
|
|
|
|
29 |
06M 103 485 D
|
qty: 1
End cap D - 02.03.2020>>
|
06M 103 485 D
|
End cap D - 02.03.2020>>
|
|
1 |
|
|
|
|
30 |
D17 650 1A1
|
qty: 1
Silicon sealant
|
D17 650 1A1
|
Silicon sealant
|
50ml black |
1 |
|
|
|
|
31 |
058 103 139
|
qty: X
dowel sleeve
|
058 103 139
|
dowel sleeve
|
8, 2X6, 5 |
X |
|
|
|
|
32 |
06M 103 201 D
|
qty: 1
Valve cylinder head cover
|
06M 103 201 D
|
Valve cylinder head cover
|
|
1 |
|
|
|
|
33 |
06M 109 311 B
|
qty: 2
Tappets
|
06M 109 311 B
|
Tappets
|
|
2 |
|
|
|
|
34 |
|
Fuel pump See main and sub-group:
|
|
Fuel pump See main and sub-group:
|
1-33 |
|
|
|
|
|
35 |
|
Camshaft see illustration, item:
|
|
Camshaft see illustration, item:
|
109-016, 1 |
|
|
|
|
|
36 |
|
Camshaft see illustration, item:
|
|
Camshaft see illustration, item:
|
109-016, 2 |
|
|
|
|
|
37 |
|
Camshaft see illustration, item:
|
|
Camshaft see illustration, item:
|
109-016, 3 |
|
|
|
|
|
38 |
|
Camshaft see illustration, item:
|
|
Camshaft see illustration, item:
|
109-016, 4 |
|
|
|
|
|
39 |
06M 121 349 A
|
qty: 2
Non-return valve
|
06M 121 349 A
|
Non-return valve
|
|
2 |
|
|
|
|
40 |
|
Bracket See main and sub-group:
|
|
Bracket See main and sub-group:
|
1-33 |
|
|
|
|
|
41 |
06M 919 501
|
qty: 1
Temperature sensor
|
06M 919 501
|
Temperature sensor
|
|
1 |
|
|
|
|
42 |
N10 335 206
|
qty: 1
Hexagon socket flat head bolt
|
N10 335 206
|
Hexagon socket flat head bolt
|
M6X12 |
1 |
|
|
|
|
43 |
079 919 523 J
|
qty: 3
Temperature sensor Coolant temperature sender
|
079 919 523 J
|
Temperature sensor Coolant temperature sender
|
|
3 |
|
|
|
|
44 |
WHT 002 287 B
|
qty: 3
O-ring
|
WHT 002 287 B
|
O-ring
|
5, 6X2 black |
3 |
|
|
|
|
45 |
N10 405 604
|
qty: 3
Oval hexagon socket head bolt
|
N10 405 604
|
Oval hexagon socket head bolt
|
M6X14 |
3 |
|
|
|
|
46 |
06M 103 729 B
|
qty: 1
Heat shield
|
06M 103 729 B
|
Heat shield
|
|
1 |
|

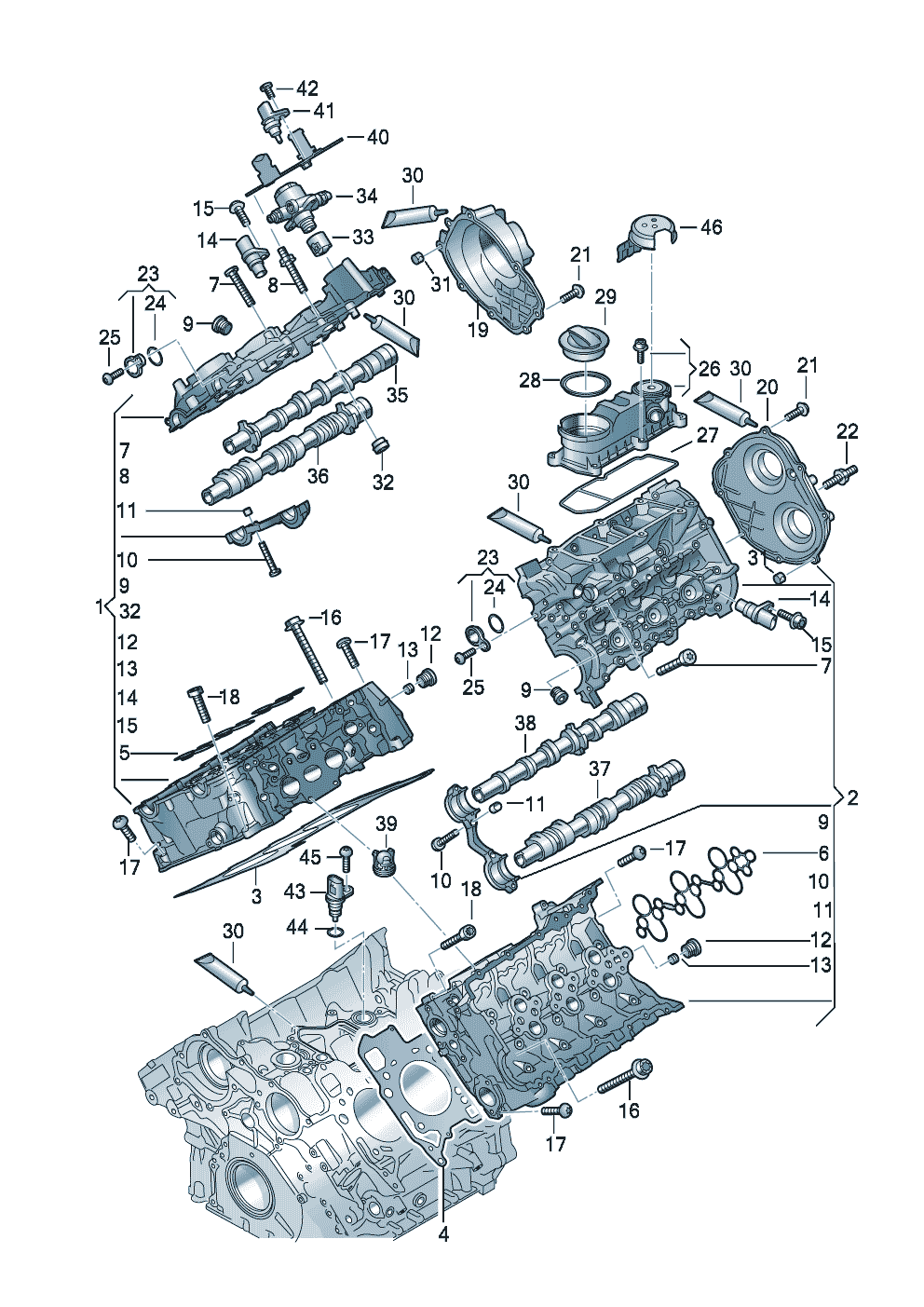

![Cylinder head cylinder head cover 2.9ltr. for Audi A6/Avant(A6) 2020 [EUROPA]](https://img.7zap.com/images/oem/vag2410/AU/Bilder_zgd/847/847103330.png "Cylinder head cylinder head cover 2.9ltr. for Audi A6/Avant(A6) 2020 [EUROPA]")
