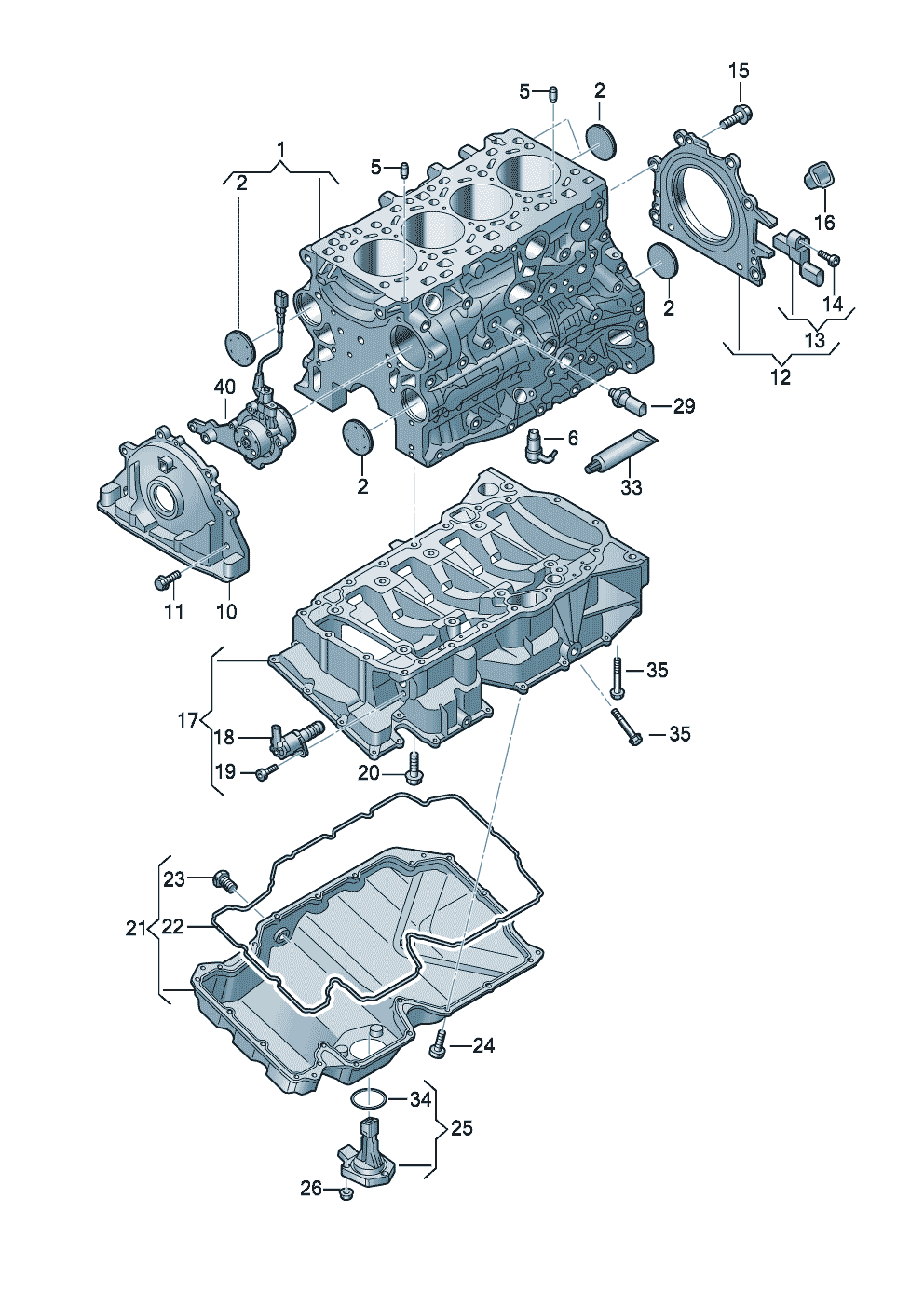

Crankcase oil sump 2.0 Ltr. for Audi A6/Avant(A6) 2020 [EUROPA]

№	part number	information		description	remark	unit	model
		Crankcase oil sump 4-cylinder+ Diesel eng.+ PR:T98+DE9		Crankcase oil sump	2.0 Ltr.		4-cylinder+ Diesel eng.+ PR:T98+DE9
1		Crankcase housing not exchangeable for this use:		Crankcase housing not exchangeable for this use:	Base engine
2	05L 103 113 B	qty: 5 End cap	05L 103 113 B	End cap	50	5
5	WHT 006 540	qty: 2 Cylinder pin	WHT 006 540	Cylinder pin	14, 15X21	2
6	05L 103 157	qty: 4 oil spray jet	05L 103 157	oil spray jet	M10	4
10	05L 103 151 C	qty: 1 Sealing flange w/ sealing ring	05L 103 151 C	Sealing flange w/ sealing ring	front	1
11	N90 945 002	qty: 6 hexagon socket head bolt with shoulder	N90 945 002	hexagon socket head bolt with shoulder	M7X21, 5	6
12	05L 103 171	qty: 1 Sealing flange with sealing ring and trigger wheel	05L 103 171	Sealing flange with sealing ring and trigger wheel	rear	1
13	04L 906 433 B	qty: 1 impulse sender Crankshaft	04L 906 433 B	impulse sender Crankshaft	3 pin	1
14		Socket head bolt Included in position:		Socket head bolt Included in position:	M5 13
15	N90 945 002	qty: 6 hexagon socket head bolt with shoulder	N90 945 002	hexagon socket head bolt with shoulder	M7X21, 5	6
17	05L 103 603 D	qty: 1 oil sump-upper part	05L 103 603 D	oil sump-upper part		1
18	05L 906 455 A	qty: 1 oil pressure regulating valve	05L 906 455 A	oil pressure regulating valve		1
19	N10 653 601	qty: 1 Hexagon socket head bolt	N10 653 601	Hexagon socket head bolt	M6X20	1
20	N90 735 604	qty: 25 hexagon socket head bolt with shoulder	N90 735 604	hexagon socket head bolt with shoulder	M7X28	25
21	05L 103 602 B	qty: 1 oil sump-lower part	05L 103 602 B	oil sump-lower part		1
22	05L 103 609 A	qty: 1 gasket for oil sump	05L 103 609 A	gasket for oil sump		1
23	06L 103 801 D	qty: 1 Oil drain plug with seal optional:	06L 103 801 D	Oil drain plug with seal optional:	06L 103 801	1
23	06L 103 801	qty: 1 Oil drain plug with seal optional:	06L 103 801	Oil drain plug with seal optional:	06L 103 801 D	1
24	N10 644 401	qty: 21 Oval hexagon socket head bolt	N10 644 401	Oval hexagon socket head bolt	M6X22	21
25	05L 907 660 A	qty: 1 oil level sensor	05L 907 660 A	oil level sensor		1
26	N01 508 210	qty: 3 Hexagon collar nut	N01 508 210	Hexagon collar nut	M6	3
29	04C 906 060 C	qty: 1 Oil pressure sender	04C 906 060 C	Oil pressure sender		1
33	D17 650 1A1	qty: X Silicon sealant (Between the crankcase and top section of oil sump)	D17 650 1A1	Silicon sealant (Between the crankcase and top section of oil sump)	50ml	X
34	038 103 196 B	qty: 1 seal ring	038 103 196 B	seal ring		1
40		Coolant pump See main and sub-group:		Coolant pump See main and sub-group:	1-21
