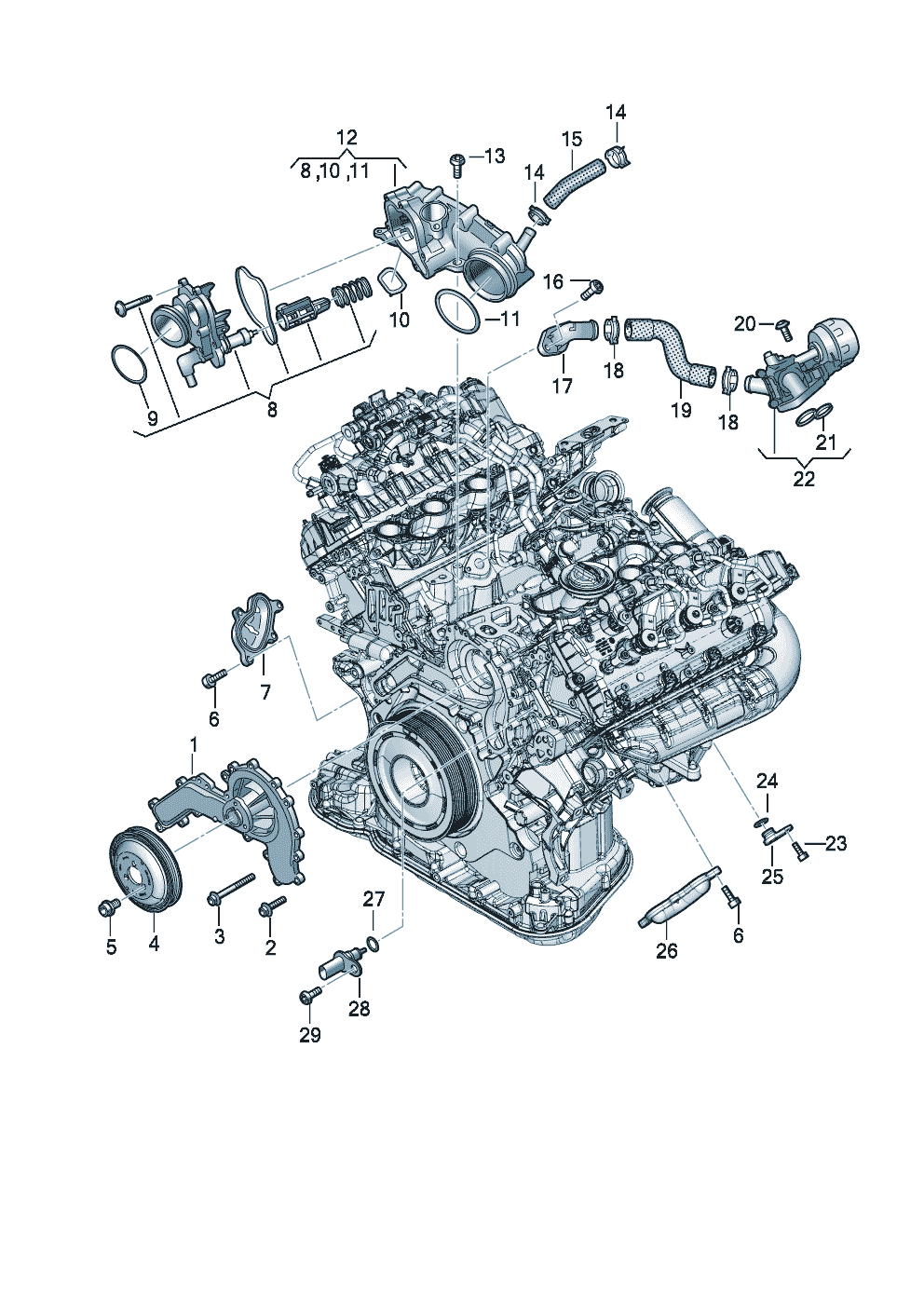

Coolant pump Coolant regulator End cap 3.0Ltr. for Audi A6/Avant(A6) 2020 [EUROPA]

№	part number	information		description	remark	unit	model
		Coolant pump Coolant regulator End cap 6-cylinder+ Diesel eng.+ PR:T2P		Coolant pump Coolant regulator End cap	3.0Ltr.		6-cylinder+ Diesel eng.+ PR:T2P
1	059 121 016 G	qty: 1 Coolant pump with glued in sealing ring	059 121 016 G	Coolant pump with glued in sealing ring		1
2	N10 700 201	qty: 14 Hexagon socket head bolt	N10 700 201	Hexagon socket head bolt	M6X22	14
3	N10 582 103	qty: 3 oval head countersunk bolt with multi-point socket head	N10 582 103	oval head countersunk bolt with multi-point socket head	M6X40	3
4	059 121 031 S	qty: 1 v-belt pulley	059 121 031 S	v-belt pulley	aluminium	1
5	N91 052 201	qty: 3 Socket head collared bolt with inner multipoint head	N91 052 201	Socket head collared bolt with inner multipoint head	M8X12	3
6	N10 451 408	qty: 8 Oval hexagon socket head bolt	N10 451 408	Oval hexagon socket head bolt	M6X16	8
7	059 121 484 D	qty: 1 End cap with seal	059 121 484 D	End cap with seal	right	1
8	059 121 114 G	qty: 1 repair set Coolant regulator	059 121 114 G	repair set Coolant regulator		1
9	059 121 688 A	qty: 1 seal ring	059 121 688 A	seal ring	39X3, 1	1
10	059 121 228	qty: 1 Seal	059 121 228	Seal		1
11	059 121 665	qty: 1 seal ring	059 121 665	seal ring	51X3, 8	1
12	059 121 111 D K	qty: 1 Coolant regulator	059 121 111 D K	Coolant regulator		1
13	N10 451 405	qty: 3 Oval hexagon socket head bolt	N10 451 405	Oval hexagon socket head bolt	M6X16	3
14	N90 926 401	qty: 2 Spring band clamp	N90 926 401	Spring band clamp	19X12	2
15	059 121 073 A B	qty: 1 Coolant hose	059 121 073 A B	Coolant hose		1
16	N10 196 103	qty: 2 Oval socket head bolt with hex drive	N10 196 103	Oval socket head bolt with hex drive	M6X18	2
17	059 121 131 S	qty: 1 Coolant connection	059 121 131 S	Coolant connection		1
18	N90 687 001	qty: 2 Spring band clamp	N90 687 001	Spring band clamp	27X12	2
19	059 121 057 S	qty: 1 Coolant hose	059 121 057 S	Coolant hose		1
20	N10 196 103	qty: 3 Oval socket head bolt with hex drive	N10 196 103	Oval socket head bolt with hex drive	M6X18	3
21	059 121 149 F	qty: 1 seal ring	059 121 149 F	seal ring		1
22	059 121 737 A R	qty: 1 regulating valve	059 121 737 A R	regulating valve		1
23	N10 170 302	qty: 1 round hd. screw	N10 170 302	round hd. screw	M6X10	1
24	N90 783 402	qty: 1 O-ring	N90 783 402	O-ring	13, 1X1, 6	1
25	059 121 155 B K	qty: 1 Cover	059 121 155 B K	Cover		1
26	059 121 483 E	qty: 1 End cap with seal	059 121 483 E	End cap with seal	left	1
27	WHT 002 287 B	qty: 2 O-ring	WHT 002 287 B	O-ring	5, 6X2 black	2
28	079 919 523 H	qty: 1 Temperature sensor	079 919 523 H	Temperature sensor		1
29	N10 170 302	qty: 1 round hd. screw	N10 170 302	round hd. screw	M6X10	1
