Coolant hoses for heater
Diesel eng.+
PR:TS8
|
|
Coolant hoses for heater
|
3.0Ltr. |
|
Diesel eng.+
PR:TS8 |
|
|
|
1 |
4K1 819 344 G
|
qty: 1
Coolant hose with quick release coupling D >> - 06.01.2020
|
4K1 819 344 G
|
Coolant hose with quick release coupling D >> - 06.01.2020
|
lhd |
1 |
|
|
|
|
1 |
4K1 819 344 Q
|
qty: 1
Coolant hose with quick release coupling D - 06.01.2020>> - 16.05.2022
|
4K1 819 344 Q
|
Coolant hose with quick release coupling D - 06.01.2020>> - 16.05.2022
|
lhd |
1 |
|
|
|
|
1 |
4K1 819 344 Q
|
qty: 1
Coolant hose with quick release coupling D - 16.05.2022>> - 05.09.2022
|
4K1 819 344 Q
|
Coolant hose with quick release coupling D - 16.05.2022>> - 05.09.2022
|
lhd |
1 |
|
|
|
|
1 |
4K1 819 344 A K
|
qty: 1
Coolant hose with quick release coupling D - 16.05.2022>> - 05.09.2022
|
4K1 819 344 A K
|
Coolant hose with quick release coupling D - 16.05.2022>> - 05.09.2022
|
lhd |
1 |
|
|
|
|
1 |
4K1 819 344 A K
|
qty: 1
Coolant hose with quick release coupling D - 05.09.2022>> - 28.04.2025
|
4K1 819 344 A K
|
Coolant hose with quick release coupling D - 05.09.2022>> - 28.04.2025
|
lhd |
1 |
|
|
|
|
2 |
|
Reservoir see illustration, item:
|
|
Reservoir see illustration, item:
|
lhd
121-162, 10 |
|
|
|
|
|
3 |
4K2 819 347 G
|
qty: 1
Coolant hose with quick release coupling D >> - 06.01.2020
|
4K2 819 347 G
|
Coolant hose with quick release coupling D >> - 06.01.2020
|
rhd |
1 |
|
|
|
|
3 |
4K2 819 347 K
|
qty: 1
Coolant hose with quick release coupling D - 06.01.2020>> - 16.05.2022
|
4K2 819 347 K
|
Coolant hose with quick release coupling D - 06.01.2020>> - 16.05.2022
|
rhd |
1 |
|
|
|
|
3 |
4K2 819 347 K
|
qty: 1
Coolant hose with quick release coupling D - 16.05.2022>> - 05.09.2022
|
4K2 819 347 K
|
Coolant hose with quick release coupling D - 16.05.2022>> - 05.09.2022
|
rhd |
1 |
|
|
|
|
3 |
4K2 819 347 P
|
qty: 1
Coolant hose with quick release coupling D - 16.05.2022>> - 05.09.2022
|
4K2 819 347 P
|
Coolant hose with quick release coupling D - 16.05.2022>> - 05.09.2022
|
rhd |
1 |
|
|
|
|
3 |
4K2 819 347 P
|
qty: 1
Coolant hose with quick release coupling D - 05.09.2022>> - 28.04.2025
|
4K2 819 347 P
|
Coolant hose with quick release coupling D - 05.09.2022>> - 28.04.2025
|
rhd |
1 |
|
|
|
|
4 |
4K2 819 377 E
|
qty: 1
Coolant pipe D >> - 03.10.2022
|
4K2 819 377 E
|
Coolant pipe D >> - 03.10.2022
|
rhd |
1 |
|
|
|
|
4 |
4K2 819 377 R
|
qty: 1
Coolant pipe D - 03.10.2022>>
|
4K2 819 377 R
|
Coolant pipe D - 03.10.2022>>
|
rhd |
1 |
|
|
|
|
5 |
N01 508 210
|
qty: 1
Hexagon collar nut
|
N01 508 210
|
Hexagon collar nut
|
M6 rhd |
1 |
|
|
|
|
6 |
|
Coolant pipe see illustration, item:
|
|
Coolant pipe see illustration, item:
|
121-152, 26 |
|
|
|
|
|
7 |
4K0 819 377 R
|
qty: 1
Coolant pipe D >> - 20.07.2020
|
4K0 819 377 R
|
Coolant pipe D >> - 20.07.2020
|
|
1 |
|
|
|
|
7 |
4K0 819 377 A E
|
qty: 1
Coolant pipe D - 20.07.2020>>
|
4K0 819 377 A E
|
Coolant pipe D - 20.07.2020>>
|
|
1 |
|
|
|
|
8 |
N90 724 603
|
qty: 1
hexagon head bolt (combi) D >> - 27.01.2020
|
N90 724 603
|
hexagon head bolt (combi) D >> - 27.01.2020
|
M6X22 |
1 |
|
|
|
|
8 |
N10 748 001
|
qty: 1
Hexagon socket head collared bolt, thread forming D - 27.01.2020>>
|
N10 748 001
|
Hexagon socket head collared bolt, thread forming D - 27.01.2020>>
|
6X16 |
1 |
|
|
|
|
9 |
N01 508 210
|
qty: 1
Hexagon collar nut
|
N01 508 210
|
Hexagon collar nut
|
M6 |
1 |
|
|
|
|
10 |
4K0 819 375 G
|
qty: 1
Coolant hose
|
4K0 819 375 G
|
Coolant hose
|
|
1 |
|
|
|
|
11 |
06H 121 601 N
|
qty: 1
Additional coolant pump
|
06H 121 601 N
|
Additional coolant pump
|
|
1 |
|
|
|
|
12 |
4G0 129 234
|
qty: 3
Rubber bush
|
4G0 129 234
|
Rubber bush
|
|
3 |
|
|
|
|
13 |
WHT 002 306
|
qty: 3
self-tapping screw
|
WHT 002 306
|
self-tapping screw
|
3, 5X12 |
3 |
|
|
|
|
14 |
4K0 819 147 C
|
qty: 1
Bracket for additional coolant pump
|
4K0 819 147 C
|
Bracket for additional coolant pump
|
|
1 |
|
|
|
|
15 |
N91 199 801
|
qty: 2
Blind rivet stud
|
N91 199 801
|
Blind rivet stud
|
M8X19, 2 |
2 |
|
|
|
|
16 |
N10 609 201
|
qty: 2
Hexagon collar nut
|
N10 609 201
|
Hexagon collar nut
|
M8 |
2 |
|
|
|
|
17 |
4K0 819 337 R
|
qty: 1
Coolant hose
|
4K0 819 337 R
|
Coolant hose
|
|
1 |
|
|
|
|
18 |
4K0 121 093
|
qty: 1
Double clip
|
4K0 121 093
|
Double clip
|
|
1 |
|
|
|
|
19 |
|
Coolant pipe see illustration, item:
|
|
Coolant pipe see illustration, item:
|
121-152, 13 |
|
|
|
|
|
20 |
4K0 121 445 A M
|
qty: 1
Coolant hose
|
4K0 121 445 A M
|
Coolant hose
|
|
1 |
|
|
|
|
21 |
4K0 121 486
|
qty: 1
Coolant pipe D >> - 03.10.2022
|
4K0 121 486
|
Coolant pipe D >> - 03.10.2022
|
|
1 |
|
|
|
|
21 |
4K0 121 486 H
|
qty: 1
Coolant pipe D - 03.10.2022>>
|
4K0 121 486 H
|
Coolant pipe D - 03.10.2022>>
|
|
1 |
|
|
|
|
22 |
N91 096 701
|
qty: 1
Oval hexagon socket head bolt
|
N91 096 701
|
Oval hexagon socket head bolt
|
M6X16 |
1 |
|
|
|
|
23 |
N01 508 215
|
qty: 1
Hexagon collar nut
|
N01 508 215
|
Hexagon collar nut
|
M6 |
1 |
|
|
|
|
24 |
|
Coolant hose see illustration, item:
|
|
Coolant hose see illustration, item:
|
121-154, 33 |
|
|
|
|
|
30 |
N90 686 902
|
qty: 6
Spring band clamp
|
N90 686 902
|
Spring band clamp
|
23X12 lhd |
6 |
|
|
|
|
30 |
N90 686 902
|
qty: 8
Spring band clamp
|
N90 686 902
|
Spring band clamp
|
23X12 rhd |
8 |
|
|
|
|
31 |
N90 687 001
|
qty: 3
Spring band clamp
|
N90 687 001
|
Spring band clamp
|
27X12 |
3 |
|

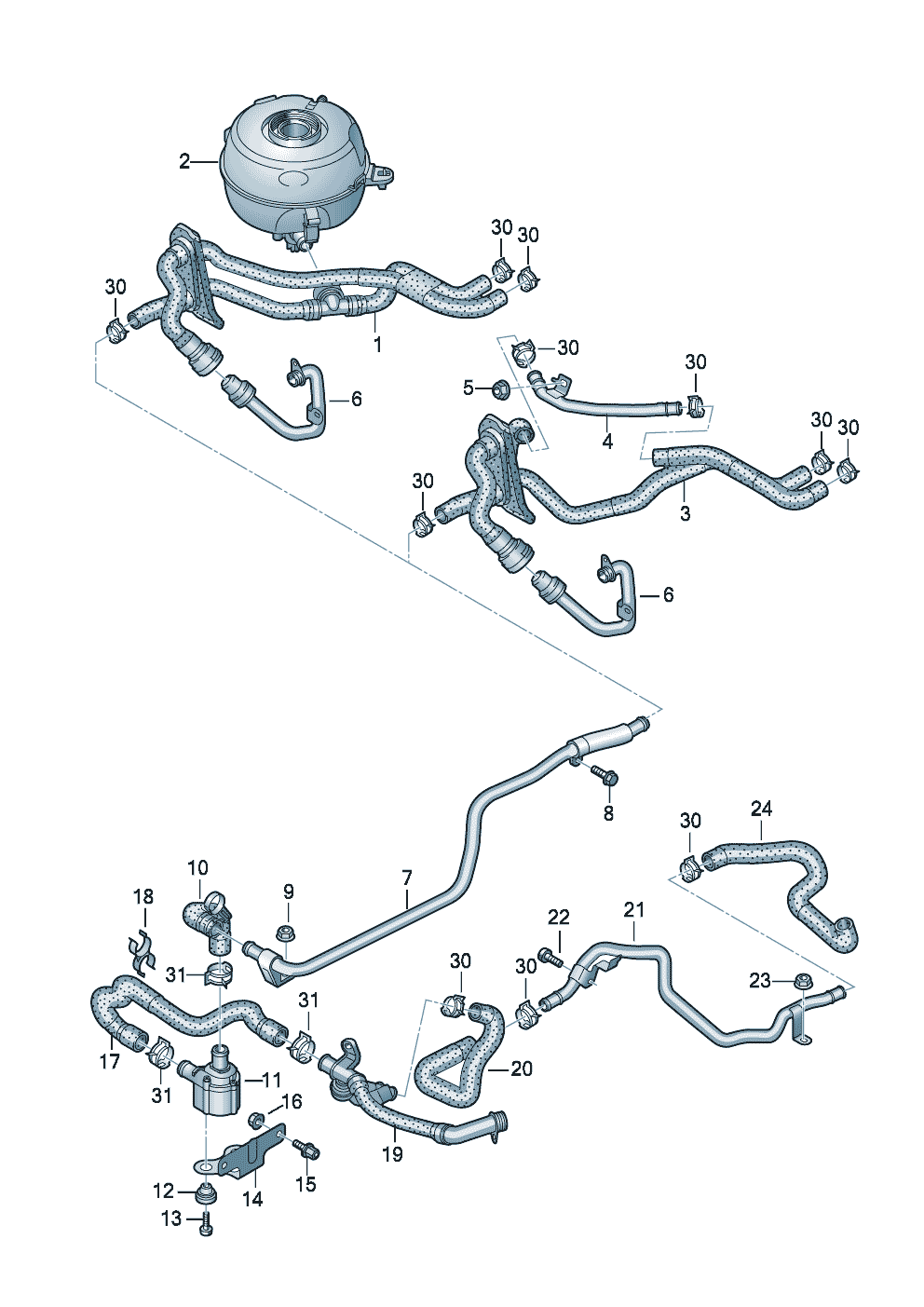

![Coolant hoses for heater 3.0Ltr. for Audi A6/Avant(A6) 2020 [EUROPA]](https://img.7zap.com/images/oem/vag2410/AU/Bilder_zgd/435/435121158.png "Coolant hoses for heater 3.0Ltr. for Audi A6/Avant(A6) 2020 [EUROPA]")
