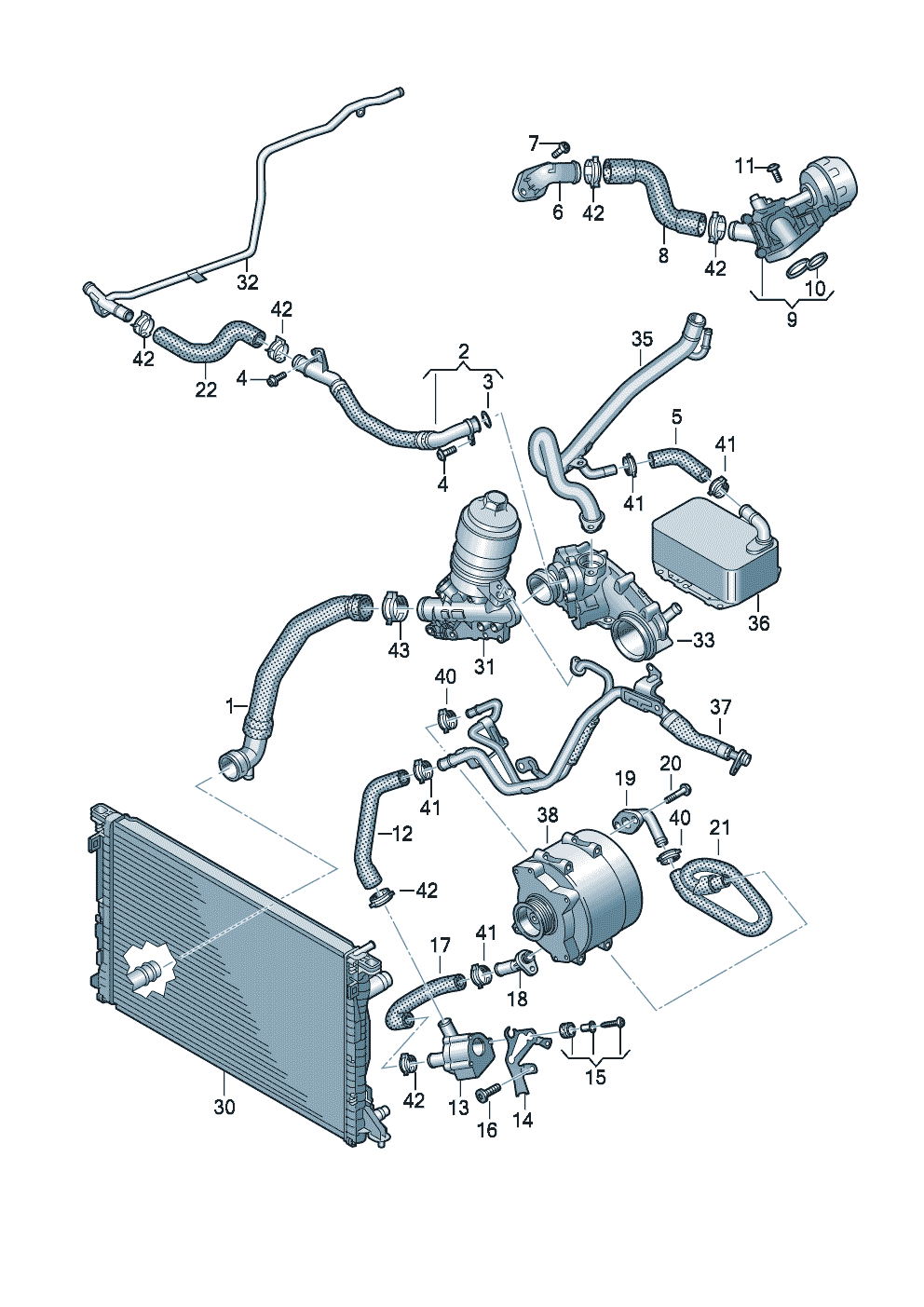

Coolant cooling system
Diesel eng.+
PR:TU8
|
|
Coolant cooling system
|
3.0Ltr. right front |
|
Diesel eng.+
PR:TU8 |
|
|
|
1 |
4K0 122 055 A L
|
qty: 1
Coolant hose with quick release coupling
|
4K0 122 055 A L
|
Coolant hose with quick release coupling
|
|
1 |
|
|
|
|
1 |
4K0 122 055 B B
|
qty: 1
Coolant hose with quick release coupling
|
4K0 122 055 B B
|
Coolant hose with quick release coupling
|
|
1 |
|
|
|
|
1 |
4K0 122 055 A T
|
qty: 1
Coolant hose with quick release coupling
|
4K0 122 055 A T
|
Coolant hose with quick release coupling
|
|
1 |
|
|
|
|
2 |
059 121 075 F J
|
qty: 1
Coolant pipe
|
059 121 075 F J
|
Coolant pipe
|
|
1 |
|
|
|
|
3 |
N91 008 401
|
qty: 1
O-ring
|
N91 008 401
|
O-ring
|
19, 6X3 |
1 |
|
|
|
|
4 |
N10 335 206
|
qty: 2
Hexagon socket flat head bolt
|
N10 335 206
|
Hexagon socket flat head bolt
|
M6X12 |
2 |
|
|
|
|
5 |
059 121 073 A F
|
qty: 1
Coolant hose
|
059 121 073 A F
|
Coolant hose
|
|
1 |
|
|
|
|
6 |
059 121 131 S
|
qty: 1
Coolant connection
|
059 121 131 S
|
Coolant connection
|
|
1 |
|
|
|
|
7 |
N10 196 103
|
qty: 2
Oval socket head bolt with hex drive
|
N10 196 103
|
Oval socket head bolt with hex drive
|
M6X18 |
2 |
|
|
|
|
8 |
059 121 057 S
|
qty: 1
Coolant hose
|
059 121 057 S
|
Coolant hose
|
|
1 |
|
|
|
|
9 |
059 121 737 A R
|
qty: 1
regulating valve
|
059 121 737 A R
|
regulating valve
|
|
1 |
|
|
|
|
10 |
059 121 149 F
|
qty: 1
seal ring
|
059 121 149 F
|
seal ring
|
|
1 |
|
|
|
|
11 |
N10 196 103
|
qty: 3
Oval socket head bolt with hex drive
|
N10 196 103
|
Oval socket head bolt with hex drive
|
M6X18 |
3 |
|
|
|
|
12 |
059 121 051 H
|
qty: 1
Coolant hose
|
059 121 051 H
|
Coolant hose
|
|
1 |
|
|
|
|
13 |
06H 121 601 M
|
qty: 1
Coolant pump
|
06H 121 601 M
|
Coolant pump
|
|
1 |
|
|
|
|
14 |
059 121 306
|
qty: 1, , 3, 3
Bracket for additional coolant pump contains: D >> - 22.06.2020
|
059 121 306
|
Bracket for additional coolant pump contains: D >> - 22.06.2020
|
03L 121 275 03L 121 199 |
1, , 3, 3 |
|
|
|
|
14 |
059 121 306 D
|
qty: 1, , 3, 3
Bracket for additional coolant pump contains: D - 22.06.2020>>
|
059 121 306 D
|
Bracket for additional coolant pump contains: D - 22.06.2020>>
|
03L 121 275 03L 121 199 |
1, , 3, 3 |
|
|
|
|
15 |
5N0 198 093
|
qty: 1
1 set attachment parts Additional coolant pump
|
5N0 198 093
|
1 set attachment parts Additional coolant pump
|
|
1 |
|
|
|
|
16 |
N91 096 701
|
qty: 2
Oval hexagon socket head bolt
|
N91 096 701
|
Oval hexagon socket head bolt
|
M6X16 |
2 |
|
|
|
|
17 |
059 121 049 F
|
qty: 1
Coolant hose
|
059 121 049 F
|
Coolant hose
|
|
1 |
|
|
|
|
18 |
059 121 132 L
|
qty: 1
Coolant connection
|
059 121 132 L
|
Coolant connection
|
|
1 |
|
|
|
|
19 |
059 121 744 E
|
qty: 1
water connection
|
059 121 744 E
|
water connection
|
|
1 |
|
|
|
|
- |
059 121 149 J
|
qty: 1
Moulded seal
|
059 121 149 J
|
Moulded seal
|
|
1 |
|
|
|
|
20 |
N10 156 206
|
qty: 2
Oval hexagon socket head bolt
|
N10 156 206
|
Oval hexagon socket head bolt
|
M6X30 |
2 |
|
|
|
|
21 |
059 121 444 J
|
qty: 1
Coolant hose
|
059 121 444 J
|
Coolant hose
|
|
1 |
|
|
|
|
22 |
4K0 819 374 R
|
qty: 1
Coolant hose
|
4K0 819 374 R
|
Coolant hose
|
|
1 |
|
|
|
|
30 |
|
Cooler for coolant see illustration, item:
|
|
Cooler for coolant see illustration, item:
|
121-120, 1 |
|
|
|
|
|
31 |
|
oil filter with flange See main and sub-group:
|
|
oil filter with flange See main and sub-group:
|
1-15 |
|
|
|
|
|
32 |
|
Coolant pipe see illustration, item:
|
|
Coolant pipe see illustration, item:
|
121-114, 11 |
|
|
|
|
|
32 |
|
Coolant pipe see illustration, item:
|
|
Coolant pipe see illustration, item:
|
121-116, 3 |
|
|
|
|
|
33 |
|
Coolant regulator see illustration, item:
|
|
Coolant regulator see illustration, item:
|
121-100, 6 |
|
|
|
|
|
35 |
|
Coolant pipe see illustration, item:
|
|
Coolant pipe see illustration, item:
|
121-106, 30 |
|
|
|
|
|
36 |
|
Oil cooler See main and sub-group:
|
|
Oil cooler See main and sub-group:
|
1-15 |
|
|
|
|
|
37 |
|
Coolant pipe see illustration, item:
|
|
Coolant pipe see illustration, item:
|
121-104, 16 |
|
|
|
|
|
38 |
|
Starter-alternator (water-cooled) see illustration, item:
|
|
Starter-alternator (water-cooled) see illustration, item:
|
903-005, 1 |
|
|
|
|
|
40 |
N90 926 401
|
qty: 2
Spring band clamp
|
N90 926 401
|
Spring band clamp
|
19X12 |
2 |
|
|
|
|
41 |
N90 686 902
|
qty: 4
Spring band clamp
|
N90 686 902
|
Spring band clamp
|
23X12 |
4 |
|
|
|
|
42 |
N90 687 001
|
qty: 5
Spring band clamp
|
N90 687 001
|
Spring band clamp
|
27X12 |
5 |
|
|
|
|
43 |
N90 926 501
|
qty: 1
Spring band clamp
|
N90 926 501
|
Spring band clamp
|
47X12 |
1 |
|
