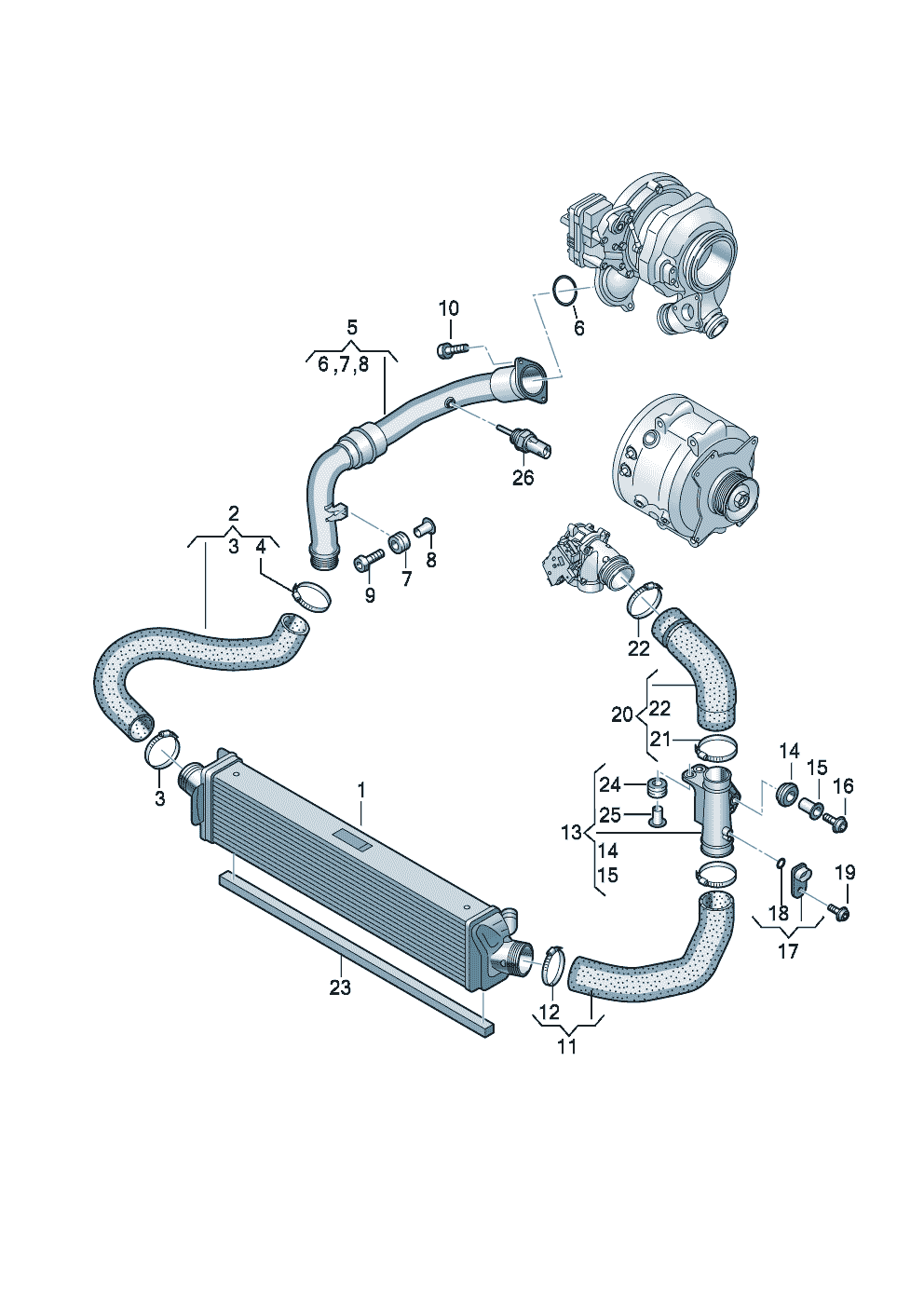

Charge air cooler 3.0Ltr. for Audi A6/Avant(A6) 2020 [EUROPA]

№	part number	information		description	remark	unit	model
		Charge air cooler 6-cylinder+ Diesel eng.+ PR:TU8		Charge air cooler	3.0Ltr.		6-cylinder+ Diesel eng.+ PR:TU8
1	4K0 145 805 Q	qty: 1 Charge air cooler	4K0 145 805 Q	Charge air cooler		1
2	4K0 145 738 T	qty: 1 Pressure hose	4K0 145 738 T	Pressure hose	right lower	1
3	N10 544 401	qty: 1 Hose clamp	N10 544 401	Hose clamp	60-80X12	1
4	N10 619 801	qty: 1 Hose clamp	N10 619 801	Hose clamp	45-65X12	1
5	059 145 673 E C	qty: 1 pressure pipe	059 145 673 E C	pressure pipe	right	1
6	059 145 865 M	qty: 1 O-ring	059 145 865 M	O-ring	63, 7X4, 45	1
7	059 131 887 B	qty: 1 Grommet	059 131 887 B	Grommet		1
8	059 129 734 C	qty: 1 bush	059 129 734 C	bush		1
9	N10 156 206	qty: 1 Oval hexagon socket head bolt	N10 156 206	Oval hexagon socket head bolt	M6X30	1
10	N10 653 601	qty: 2 Hexagon socket head bolt	N10 653 601	Hexagon socket head bolt	M6X20	2
11	4K0 145 709 L	qty: 1 Pressure hose	4K0 145 709 L	Pressure hose	left lower	1
12	N10 544 401	qty: 2 Hose clamp	N10 544 401	Hose clamp	60-80X12	2
13	4K0 145 673 A D	qty: 1 pressure pipe D >> - 01.04.2019	4K0 145 673 A D	pressure pipe D >> - 01.04.2019	left	1
13	4K0 145 673 A F	qty: 1 pressure pipe D - 01.04.2019>>	4K0 145 673 A F	pressure pipe D - 01.04.2019>>	left	1
14	4G0 129 669 C	qty: 1 Grommet	4G0 129 669 C	Grommet		1
15	4G0 129 734	qty: 1 bush	4G0 129 734	bush		1
16	N10 704 501	qty: 1 Oval hexagon socket head bolt	N10 704 501	Oval hexagon socket head bolt	M6X35	1
17	06B 905 379 G	qty: 1 Temperature sensor	06B 905 379 G	Temperature sensor		1
18		O-ring No replacement part		O-ring No replacement part
19	N90 974 701	qty: 1 Hexagon socket head panel bolt	N90 974 701	Hexagon socket head panel bolt	5X16	1
20	4K0 145 737 Q	qty: 1 Pressure hose	4K0 145 737 Q	Pressure hose	left upper	1
21	N10 544 401	qty: 1 Hose clamp	N10 544 401	Hose clamp	60-80X12	1
22	N10 619 901	qty: 1 Hose clamp	N10 619 901	Hose clamp	55-75X12	1
23	4K0 145 563 B	qty: 1 Sealing strip	4K0 145 563 B	Sealing strip		1
24	4G0 129 669 C	qty: 2 Grommet	4G0 129 669 C	Grommet		2
25	4G0 129 734 C	qty: 2 bush	4G0 129 734 C	bush		2
26	03N 906 081 A	qty: 1 Charge air temperature sensor	03N 906 081 A	Charge air temperature sensor		1
