switches and senders on engine and gearbox
Petrol eng.+
CDNC,CPMA, CPMB
|
|
switches and senders on engine and gearbox
|
4 cylinder 2.0 Ltr. |
|
Petrol eng.+
CDNC,CPMA, CPMB |
|
|
|
1 |
03C 907 660 H
|
qty: 1
oil level sensor D >> - 11.05.2009
CDNC
|
03C 907 660 H
|
oil level sensor D >> - 11.05.2009
|
|
1 |
CDNC |
|
|
|
1 |
03C 907 660 H
|
qty: 1
oil level sensor D - 11.05.2009>> - MJ 2012
PR:7L1,7L7+ GP1,GP0
|
03C 907 660 H
|
oil level sensor D - 11.05.2009>> - MJ 2012
|
|
1 |
PR:7L1,7L7+ GP1,GP0 |
|
|
|
1 |
03C 907 660 M
|
qty: 1
oil level sensor D - 11.05.2009>> - MJ 2012
PR:7L8+GP1, GP0
|
03C 907 660 M
|
oil level sensor D - 11.05.2009>> - MJ 2012
|
|
1 |
PR:7L8+GP1, GP0 |
|
|
|
1 |
03C 907 660 Q
|
qty: 1
oil level sensor
PR:GP2
|
03C 907 660 Q
|
oil level sensor
|
|
1 |
PR:GP2 |
|
|
|
2 |
038 103 196 B
|
qty: 1
seal ring
|
038 103 196 B
|
seal ring
|
|
1 |
|
|
|
|
3 |
N01 508 210
|
qty: 3
Hexagon collar nut
|
N01 508 210
|
Hexagon collar nut
|
M6 |
3 |
|
|
|
|
4 |
D17 400 3M2
|
qty: 1
Silicone sealant adhesives and sealing compound
|
D17 400 3M2
|
Silicone sealant adhesives and sealing compound
|
80ML black |
1 |
|
|
|
|
5 |
038 919 081 K
|
qty: 1
Oil pressure switch
|
038 919 081 K
|
Oil pressure switch
|
0, 55-0, 85BAR 1 pin
brown
M10X1 |
1 |
|
|
|
|
6 |
06K 919 081
|
qty: 1
Oil pressure switch
|
06K 919 081
|
Oil pressure switch
|
2.15-2.95BAR 1 pin |
1 |
|
|
|
|
7 |
06A 919 501 A
|
qty: 1
Coolant temperature sender Coolant regulator
|
06A 919 501 A
|
Coolant temperature sender Coolant regulator
|
2 pin
Grey
20MM |
1 |
|
|
|
|
8 |
N90 316 801
|
qty: 1
O-ring
|
N90 316 801
|
O-ring
|
19, 6X3, 65 |
1 |
|
|
|
|
9 |
06H 121 142 C
|
qty: 1
retaining spring
|
06H 121 142 C
|
retaining spring
|
INZI |
1 |
|
|
|
|
10 |
06J 121 142
|
qty: 1
retaining spring
|
06J 121 142
|
retaining spring
|
BEHR |
1 |
|
|
|
|
11 |
N10 453 502
|
qty: 1
fillister hd. bolt to be used for item:
|
N10 453 502
|
fillister hd. bolt to be used for item:
|
5X10 9 |
1 |
|
|
|
|
12 |
|
qty: 1
impulse sender Camshaft see illustration, item:
|
|
impulse sender Camshaft see illustration, item:
|
905-000, 5 |
1 |
|
|
|
|
13 |
|
qty: 1
Intake air temperature sender see illustration, item:
CDNC
|
|
Intake air temperature sender see illustration, item:
|
133-032, 9 |
1 |
CDNC |
|
|
|
13 |
|
qty: 1
Intake air temperature sender see illustration, item:
CPMA,CPMB
|
|
Intake air temperature sender see illustration, item:
|
133-040, 10 |
1 |
CPMA,CPMB |
|
|
|
14 |
|
qty: 1
impulse sender Crankshaft see illustration, item: D >> - MJ 2012
CDNC
|
|
impulse sender Crankshaft see illustration, item: D >> - MJ 2012
|
906-000, 16 |
1 |
CDNC |
|
|
|
14 |
|
qty: 1
impulse sender Crankshaft see illustration, item: D - MJ 2013>>
|
|
impulse sender Crankshaft see illustration, item: D - MJ 2013>>
|
906-001, 13 |
1 |
|
|
|
|
15 |
|
qty: 1
knock sensor with wiring harness see illustration, item: D >> - MJ 2012
CDNC
|
|
knock sensor with wiring harness see illustration, item: D >> - MJ 2012
|
906-000, 20 |
1 |
CDNC |
|
|
|
15 |
|
qty: 1
knock sensor with wiring harness see illustration, item: PR-TG6 D - MJ 2013>>
|
|
knock sensor with wiring harness see illustration, item: PR-TG6 D - MJ 2013>>
|
906-001, 17 06E 905 379 A |
1 |
|
|
|
|
16 |
0B1 941 521 B
|
qty: 1
switch for reversing light D >> - 18.06.2012
manual
gearbox
|
0B1 941 521 B
|
switch for reversing light D >> - 18.06.2012
|
M14X1, 5 3 pin |
1 |
manual
gearbox |
|
|
|
16 |
|
qty: 1
Sensor for gear detection see main group 3 (gearbox) D - 18.06.2012>>
manual
gearbox
|
|
Sensor for gear detection see main group 3 (gearbox) D - 18.06.2012>>
|
|
1 |
manual
gearbox |

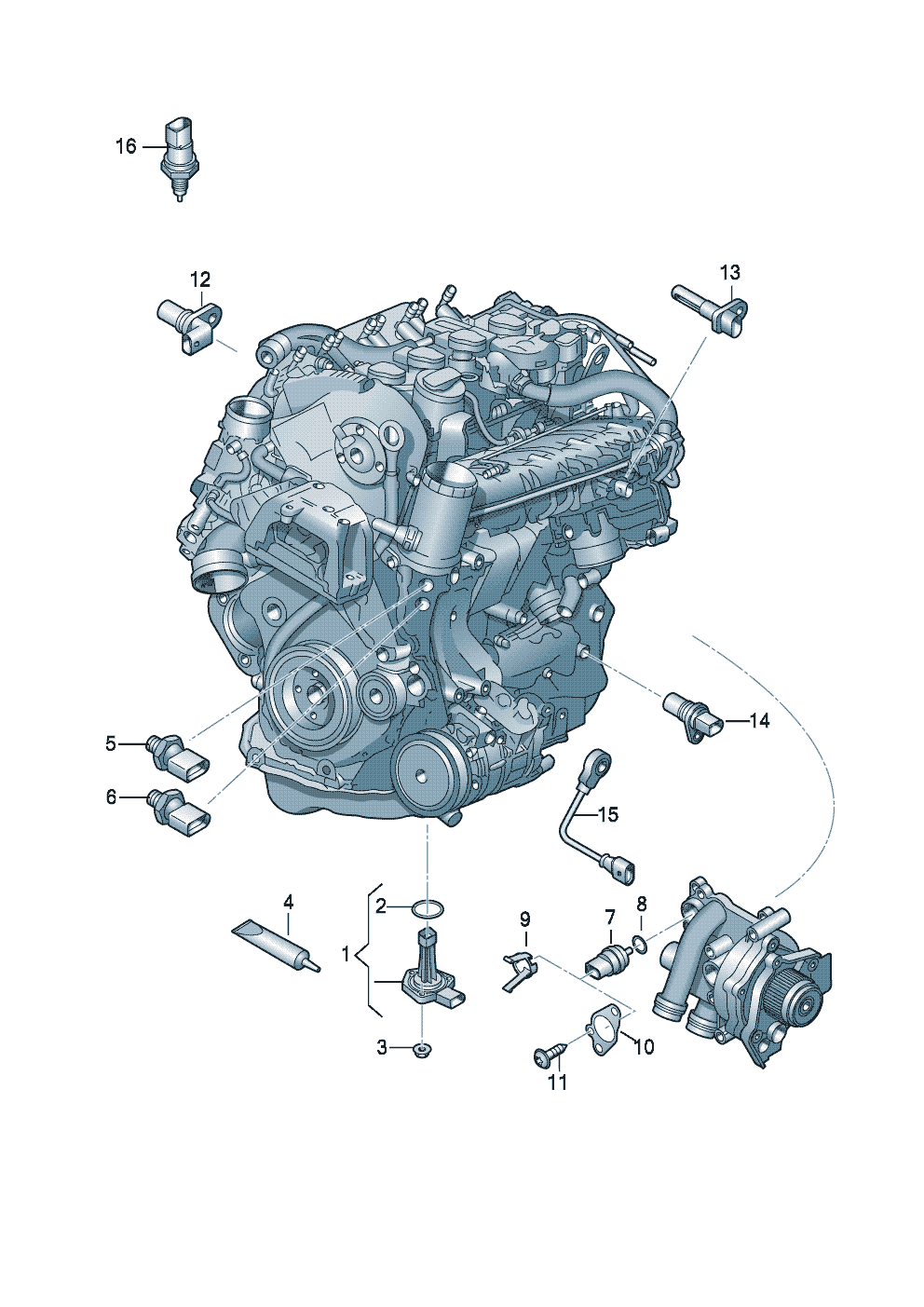

![switches and senders on engine and gearbox 4 cylinder 2.0 Ltr. for Audi A4 allroad qu.(A4AR) 2012 [EUROPA]](https://img.7zap.com/images/oem/vag2410/AU/Bilder_zgd/728/728919450.png "switches and senders on engine and gearbox 4 cylinder 2.0 Ltr. for Audi A4 allroad qu.(A4AR) 2012 [EUROPA]")
