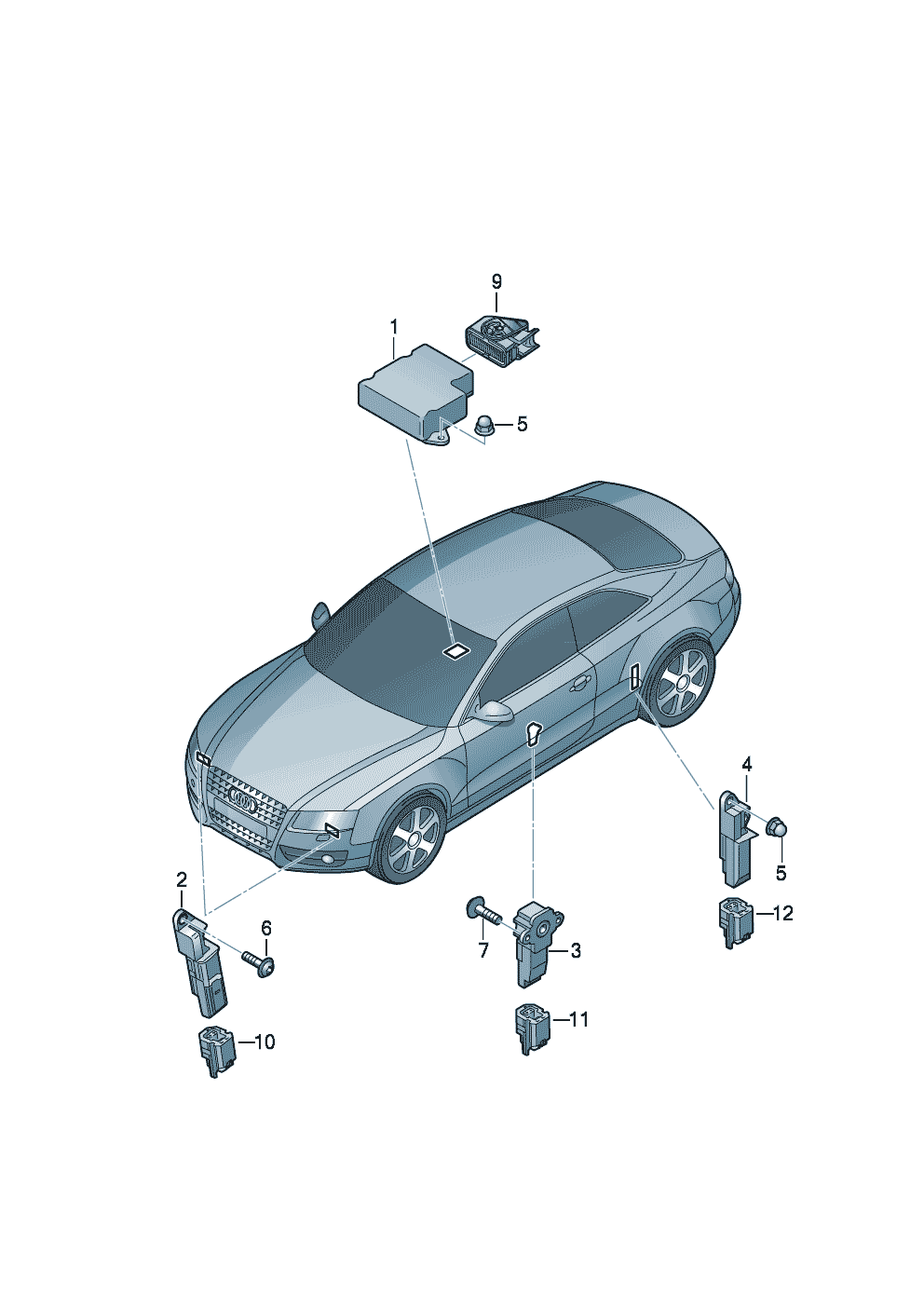

electrical parts for airbag D >> - MJ 2012
|
|
electrical parts for airbag D >> - MJ 2012
|
|
|
|
|
|
|
1 |
8K0 959 655 J
|
qty: 1
Control unit for airbag * order only with color code * See parts bulletin:
|
8K0 959 655 J
|
Control unit for airbag * order only with color code * See parts bulletin:
|
(9-100) |
1 |
|
|
|
|
1 |
8K0 959 655 L
|
qty: 1
Control unit for airbag See parts bulletin: D - 01.11.2010>> - 01.01.2012
|
8K0 959 655 L
|
Control unit for airbag See parts bulletin: D - 01.11.2010>> - 01.01.2012
|
(9-100) |
1 |
|
|
|
|
2 |
8K0 959 651
|
qty: 2
Crash sensor for airbag
|
8K0 959 651
|
Crash sensor for airbag
|
front |
2 |
|
|
|
|
3 |
8K0 955 557 C
|
qty: 2
Pressure sensor
|
8K0 955 557 C
|
Pressure sensor
|
Front doors |
2 |
|
|
|
|
4 |
1K0 909 606 C
|
qty: 2
Crash sensor for airbag
|
1K0 909 606 C
|
Crash sensor for airbag
|
rear |
2 |
|
|
|
|
5 |
WHT 000 868
|
qty: 9
Weld studs with cap nuts
|
WHT 000 868
|
Weld studs with cap nuts
|
M6X14, 8 |
9 |
|
|
|
|
6 |
N10 196 103
|
qty: 4
Oval socket head bolt with hex drive
|
N10 196 103
|
Oval socket head bolt with hex drive
|
M6X18 |
4 |
|
|
|
|
7 |
N10 753 801
|
qty: 4
Oval hexagon socket head bolt
|
N10 753 801
|
Oval hexagon socket head bolt
|
M5X18 |
4 |
|
|
|
|
9 |
8K0 998 125
|
qty: 1
flat connector housing Control unit for airbag
|
8K0 998 125
|
flat connector housing Control unit for airbag
|
100 pin yellow |
1 |
|
|
|
|
10 |
8K0 973 323 R
|
qty: 2
Flat contact housing with contact locking mechanism
|
8K0 973 323 R
|
Flat contact housing with contact locking mechanism
|
2 pin yellow |
2 |
|
|
|
|
11 |
8K0 973 323 T
|
qty: 2
Flat contact housing with contact locking mechanism
|
8K0 973 323 T
|
Flat contact housing with contact locking mechanism
|
2 pin yellow |
2 |
|
|
|
|
12 |
8K0 973 323 S
|
qty: 2
Flat contact housing with contact locking mechanism
|
8K0 973 323 S
|
Flat contact housing with contact locking mechanism
|
2 pin yellow |
2 |
|
![electrical parts for airbag D >> - MJ 2012 for Audi A4 allroad qu.(A4AR) 2012 [EUROPA]](https://img.7zap.com/images/oem/vag2410/AU/Bilder_zgd/620/620959300.png "electrical parts for airbag D >> - MJ 2012 for Audi A4 allroad qu.(A4AR) 2012 [EUROPA]")
