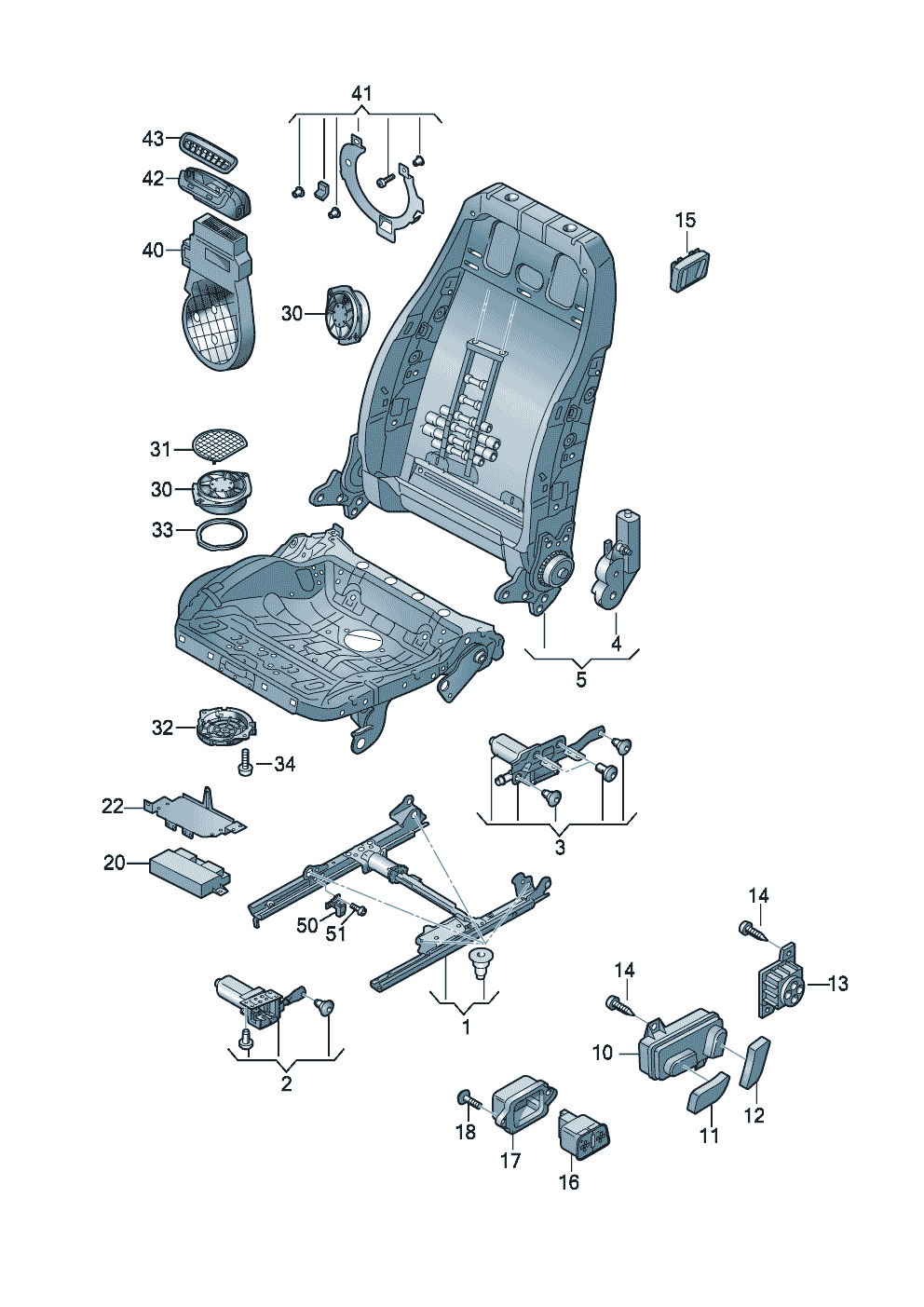

Electric parts for seat and backrest adjustment D >> - MJ 2012
|
|
Electric parts for seat and backrest adjustment D >> - MJ 2012
|
|
|
|
|
|
|
1 |
|
seat adjustment motor for longitudinal adjustment see illustration:
|
|
seat adjustment motor for longitudinal adjustment see illustration:
|
881-010 |
|
|
|
|
|
2 |
8K0 959 761
|
qty: 1
seat adjustment motor for rake adjustment
|
8K0 959 761
|
seat adjustment motor for rake adjustment
|
left |
1 |
|
|
|
|
2 |
8K0 959 762
|
qty: 1
seat adjustment motor for rake adjustment
|
8K0 959 762
|
seat adjustment motor for rake adjustment
|
right |
1 |
|
|
|
|
3 |
8K0 959 111
|
qty: 1
seat adjustment motor for height adjustment
|
8K0 959 111
|
seat adjustment motor for height adjustment
|
left |
1 |
|
|
|
|
3 |
8K0 959 112
|
qty: 1
seat adjustment motor for height adjustment
|
8K0 959 112
|
seat adjustment motor for height adjustment
|
right |
1 |
|
|
|
|
4 |
5N0 959 761 A
|
qty: 1
motor for backrest adjustment for backrest: also use:
|
5N0 959 761 A
|
motor for backrest adjustment for backrest: also use:
|
left
8T0 959 599 |
1 |
|
|
|
|
4 |
5N0 959 762 A
|
qty: 1
motor for backrest adjustment for backrest: also use:
|
5N0 959 762 A
|
motor for backrest adjustment for backrest: also use:
|
right
8T0 959 599 |
1 |
|
|
|
|
- |
8T0 898 173
|
qty: 1
Sundry parts set motor for backrest adjustment
|
8T0 898 173
|
Sundry parts set motor for backrest adjustment
|
left a. right |
1 |
|
|
|
|
- |
8T0 959 599
|
qty: 2
locking sleeve relay shaft
|
8T0 959 599
|
locking sleeve relay shaft
|
left a. right |
2 |
|
|
|
|
5 |
|
backrest frame see illustration:
|
|
backrest frame see illustration:
|
881-050 |
|
|
|
|
|
6 |
|
Not for this model
|
|
Not for this model
|
|
|
|
|
|
|
7 |
|
Not for this model
|
|
Not for this model
|
|
|
|
|
|
|
8 |
|
Not for this model
|
|
Not for this model
|
|
|
|
|
|
|
10 |
8K0 959 747
|
qty: 1
switch for seat longitudinal- seat height- seat rake and backrest adjustment
PR:3L5,3PB
|
8K0 959 747
|
switch for seat longitudinal- seat height- seat rake and backrest adjustment
|
left lhd |
1 |
PR:3L5,3PB |
|
|
|
10 |
8K0 959 747
|
qty: 1
switch for seat longitudinal- seat height- seat rake and backrest adjustment
PR:3L4,3L5
|
8K0 959 747
|
switch for seat longitudinal- seat height- seat rake and backrest adjustment
|
left rhd |
1 |
PR:3L4,3L5 |
|
|
|
10 |
8K0 959 747 B
|
qty: 1
switch for seat longitudinal- seat height- seat rake and backrest adjustment
PR:3L4
|
8K0 959 747 B
|
switch for seat longitudinal- seat height- seat rake and backrest adjustment
|
left lhd |
1 |
PR:3L4 |
|
|
|
10 |
8K0 959 748 C
|
qty: 1
switch for seat longitudinal- seat height- seat rake and backrest adjustment
PR:3L4,3L5
|
8K0 959 748 C
|
switch for seat longitudinal- seat height- seat rake and backrest adjustment
|
right lhd |
1 |
PR:3L4,3L5 |
|
|
|
10 |
8K0 959 748 C
|
qty: 1
switch for seat longitudinal- seat height- seat rake and backrest adjustment
PR:3L5,3PE
|
8K0 959 748 C
|
switch for seat longitudinal- seat height- seat rake and backrest adjustment
|
right rhd |
1 |
PR:3L5,3PE |
|
|
|
10 |
8K0 959 748 B
|
qty: 1
switch for seat longitudinal- seat height- seat rake and backrest adjustment
PR:3L4
|
8K0 959 748 B
|
switch for seat longitudinal- seat height- seat rake and backrest adjustment
|
right rhd |
1 |
PR:3L4 |
|
|
|
11 |
8K0 959 815
|
qty: 1
Setting knob
PR:3L4,3L5, 3PB
|
8K0 959 815
|
Setting knob
|
left |
1 |
PR:3L4,3L5, 3PB |
|
|
|
|
8K0 959 815 4 PK
|
soul (black)
|
8K0 959 815 4 PK
|
soul (black)
|
-CN, CP, GD |
|
|
|
|
|
|
8K0 959 815 6 1S
|
Luxor beige
|
8K0 959 815 6 1S
|
Luxor beige
|
-BY |
|
|
|
|
|
|
8K0 959 815 J 50
|
light grey
|
8K0 959 815 J 50
|
light grey
|
-CX |
|
|
|
|
|
|
8K0 959 815 K 38
|
Cardamom beige
|
8K0 959 815 K 38
|
Cardamom beige
|
-BZ, CT |
|
|
|
|
|
11 |
8K0 959 816
|
qty: 1
Setting knob
PR:3L4,3L5, 3PE
|
8K0 959 816
|
Setting knob
|
right |
1 |
PR:3L4,3L5, 3PE |
|
|
|
|
8K0 959 816 4 PK
|
soul (black)
|
8K0 959 816 4 PK
|
soul (black)
|
-CN, CP, GD |
|
|
|
|
|
|
8K0 959 816 6 1S
|
Luxor beige
|
8K0 959 816 6 1S
|
Luxor beige
|
-BY |
|
|
|
|
|
|
8K0 959 816 J 50
|
light grey
|
8K0 959 816 J 50
|
light grey
|
-CX |
|
|
|
|
|
|
8K0 959 816 K 38
|
Cardamom beige
|
8K0 959 816 K 38
|
Cardamom beige
|
-BZ, CT |
|
|
|
|
|
12 |
8K0 959 817
|
qty: 1
Setting knob
PR:3L4,3L5, 3PB
|
8K0 959 817
|
Setting knob
|
left |
1 |
PR:3L4,3L5, 3PB |
|
|
|
|
8K0 959 817 4 PK
|
soul (black)
|
8K0 959 817 4 PK
|
soul (black)
|
-CN, CP, GD |
|
|
|
|
|
|
8K0 959 817 6 1S
|
Luxor beige
|
8K0 959 817 6 1S
|
Luxor beige
|
-BY |
|
|
|
|
|
|
8K0 959 817 J 50
|
light grey
|
8K0 959 817 J 50
|
light grey
|
-CX |
|
|
|
|
|
|
8K0 959 817 K 38
|
Cardamom beige
|
8K0 959 817 K 38
|
Cardamom beige
|
-BZ, CT |
|
|
|
|
|
12 |
8K0 959 818
|
qty: 1
Setting knob
PR:3L4,3L5, 3PE
|
8K0 959 818
|
Setting knob
|
right |
1 |
PR:3L4,3L5, 3PE |
|
|
|
|
8K0 959 818 4 PK
|
soul (black)
|
8K0 959 818 4 PK
|
soul (black)
|
-CN, CP, GD |
|
|
|
|
|
|
8K0 959 818 6 1S
|
Luxor beige
|
8K0 959 818 6 1S
|
Luxor beige
|
-BY |
|
|
|
|
|
|
8K0 959 818 J 50
|
light grey
|
8K0 959 818 J 50
|
light grey
|
-CX |
|
|
|
|
|
|
8K0 959 818 K 38
|
Cardamom beige
|
8K0 959 818 K 38
|
Cardamom beige
|
-BZ, CT |
|
|
|
|
|
13 |
8E0 959 777 B
|
qty: 2
Switch for lumbar support adjustment
PR:7P1
|
8E0 959 777 B
|
Switch for lumbar support adjustment
|
left a. right |
2 |
PR:7P1 |
|
|
|
|
8E0 959 777 B 4PK
|
soul (black)
|
8E0 959 777 B 4PK
|
soul (black)
|
-CN, CP, GD |
|
|
|
|
|
|
8E0 959 777 B 61S
|
Luxor beige
|
8E0 959 777 B 61S
|
Luxor beige
|
-BY |
|
|
|
|
|
|
8E0 959 777 B J50
|
light grey
|
8E0 959 777 B J50
|
light grey
|
-CX |
|
|
|
|
|
|
8E0 959 777 B K38
|
Cardamom beige
|
8E0 959 777 B K38
|
Cardamom beige
|
-BZ, CT |
|
|
|
|
|
14 |
N10 415 903
|
qty: X
Oval hexagon socket head bolt
|
N10 415 903
|
Oval hexagon socket head bolt
|
4X12 |
X |
|
|
|
|
20 |
8K0 959 760 D
|
qty: 1
Control unit for seat and backrest adjustment
PR:Q1A,Q1D+ 3L4
|
8K0 959 760 D
|
Control unit for seat and backrest adjustment
|
driver side |
1 |
PR:Q1A,Q1D+ 3L4 |
|
|
|
20 |
8K0 959 760 A
|
qty: 1
Control unit for seat and backrest adjustment D >> - 25.05.2009
PR:Q2J+3L4
|
8K0 959 760 A
|
Control unit for seat and backrest adjustment D >> - 25.05.2009
|
driver side |
1 |
PR:Q2J+3L4 |
|
|
|
20 |
8K0 959 760 E
|
qty: 1
Control unit for seat and backrest adjustment D - 25.05.2009>>
PR:Q2J+3L4
|
8K0 959 760 E
|
Control unit for seat and backrest adjustment D - 25.05.2009>>
|
driver side |
1 |
PR:Q2J+3L4 |
|
|
|
20 |
8K0 959 772
|
qty: 2
Control unit for seat ventilation control D >> - 25.05.2009
PR:Q2J+3L5
|
8K0 959 772
|
Control unit for seat ventilation control D >> - 25.05.2009
|
left a. right |
2 |
PR:Q2J+3L5 |
|
|
|
20 |
8K0 959 772 C
|
qty: 2
Seat heater and ventilation control D - 25.05.2009>>
PR:Q2J+3L5
|
8K0 959 772 C
|
Seat heater and ventilation control D - 25.05.2009>>
|
left a. right |
2 |
PR:Q2J+3L5 |
|
|
|
20 |
8K0 959 772
|
qty: 1
Control unit for seat ventilation control D >> - 25.05.2009
PR:Q2J+3L4
|
8K0 959 772
|
Control unit for seat ventilation control D >> - 25.05.2009
|
passenger side |
1 |
PR:Q2J+3L4 |
|
|
|
20 |
8K0 959 772 C
|
qty: 1
Seat heater and ventilation control D - 25.05.2009>>
PR:Q2J+3L4
|
8K0 959 772 C
|
Seat heater and ventilation control D - 25.05.2009>>
|
passenger side |
1 |
PR:Q2J+3L4 |
|
|
|
22 |
8T0 959 729
|
qty: 1
Retainer for control unit
PR:Q1A,Q1D+ 3L4
|
8T0 959 729
|
Retainer for control unit
|
left lhd |
1 |
PR:Q1A,Q1D+ 3L4 |
|
|
|
22 |
8T0 959 729
|
qty: 1
Retainer for control unit
PR:Q2J+3L4, 3L5
|
8T0 959 729
|
Retainer for control unit
|
left |
1 |
PR:Q2J+3L4, 3L5 |
|
|
|
22 |
8T0 959 730
|
qty: 1
Retainer for control unit
PR:Q1A,Q1D+ 3L4
|
8T0 959 730
|
Retainer for control unit
|
right rhd |
1 |
PR:Q1A,Q1D+ 3L4 |
|
|
|
22 |
8T0 959 730
|
qty: 1
Retainer for control unit
PR:Q2J+3L4, 3L5
|
8T0 959 730
|
Retainer for control unit
|
right |
1 |
PR:Q2J+3L4, 3L5 |
|
|
|
30 |
8T0 963 575
|
qty: 8
ventliation motor for models with seat venti- lation
PR:Q2J
|
8T0 963 575
|
ventliation motor for models with seat venti- lation
|
left a. right |
8 |
PR:Q2J |
|
|
|
31 |
8T0 882 367
|
qty: 4
Protective cap ventliation motor
PR:Q2J
|
8T0 882 367
|
Protective cap ventliation motor
|
left a. right upper |
4 |
PR:Q2J |
|
|
|
32 |
8T0 881 367
|
qty: 4
Protective cap ventliation motor
PR:Q2J
|
8T0 881 367
|
Protective cap ventliation motor
|
left a. right lower |
4 |
PR:Q2J |
|
|
|
33 |
8T0 882 369
|
qty: 4
seal ring ventliation motor
PR:Q2J
|
8T0 882 369
|
seal ring ventliation motor
|
left a. right |
4 |
PR:Q2J |
